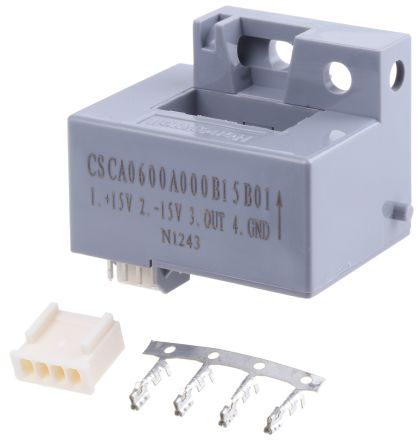

CSCA0600A000B15B01图片1

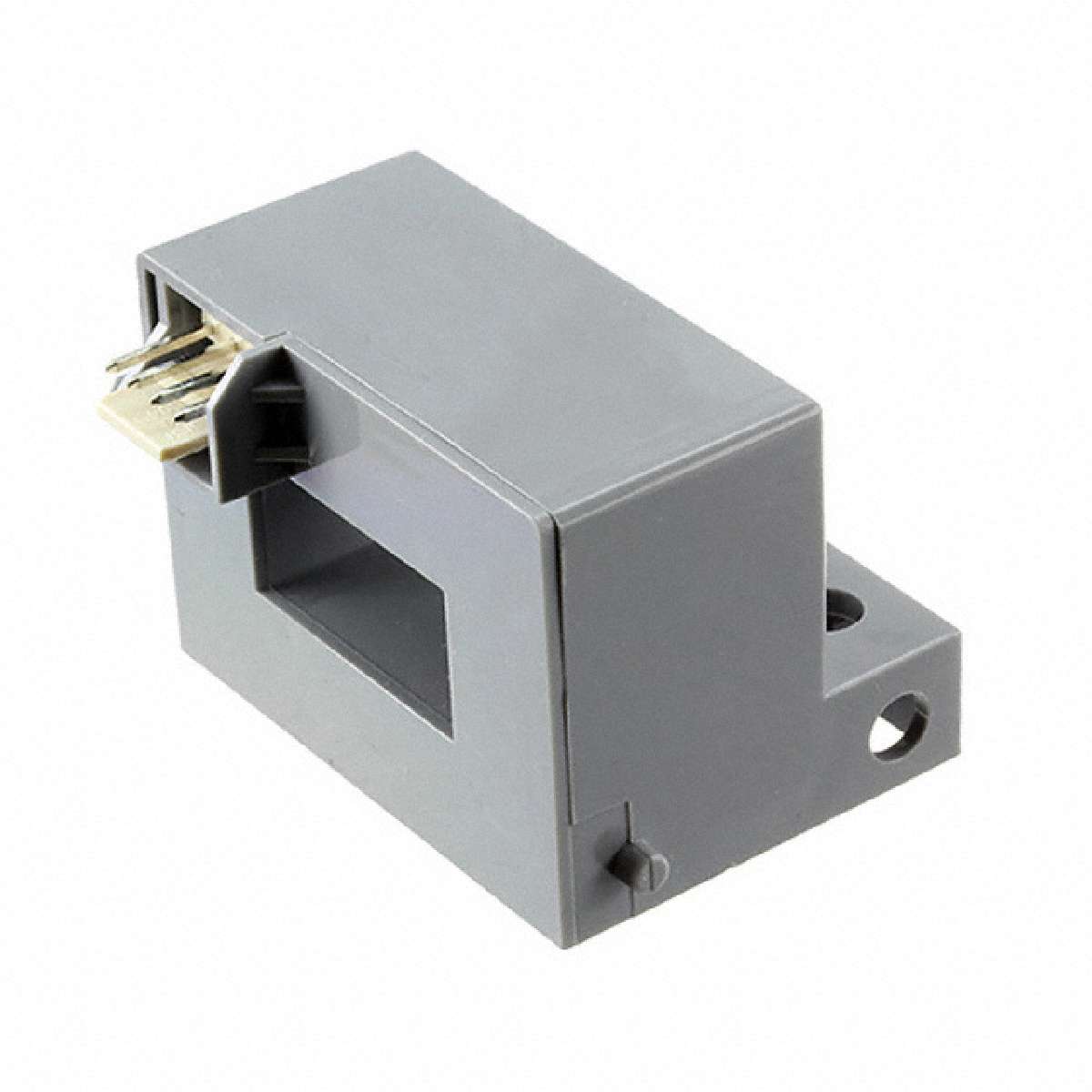

CSCA0600A000B15B01图片2
CSCA0600A000B15B01图片3
CSCA0600A000B15B01图片4
CSCA0600A000B15B01图片5
CSCA0600A000B15B01图片6
CSCA0600A000B15B01图片7
CSCA0600A000B15B01图片8
CSCA0600A000B15B01图片9
CSCA0600A000B15B01图片10
CSCA0600A000B15B01图片11
CSCA0600A000B15B01图片12
CSCA0600A000B15B01概述

Open Loop Current SensorsThe CSCA-A series of open loop current sensors from Honeywell are suitable for applications such as variable speed drives, over current protection, UPS and telecommunication power supplies, current feedback control systems and robotics.The CSCA-A series of open loop current sensors are based on the hall effect principles, a hall effect device produces an output voltage linearly related to the amplitude and phase of a magnetic field applied to it. The hall effect output is directly proportional to the amplitude and phase of the primary current.Measures ac, dc and impulse currents Low power consumption Compact size High level of electrical isolation between primary and secondary circuits Operating temperature -10 → +80 °C ### Honeywell 电流变换器

开环电流

的 CSCA-A 系列开环电流传感器适用于多种应用,如变速驱动、过电流保护、UPS 和电信电源、电流反馈控制系统和机器人。CSCA-A 系列开环电流传感器基于霍尔效应原理,霍耳效应设备可产生与所施加磁场的幅值和相位线性相关的输出电压。霍尔效应输出直接与初级电流的幅值和相位成正比。

可测量交流、直流和脉冲电流

低功耗

结构小型

初级和次级电路之间具有高级电气隔离

工作温度 -10 → +80 °C


得捷:
SENSOR CURRENT HALL 600A AC/DC


立创商城:
CSCA0600A000B15B01


欧时:
Honeywell CSCA-A 系列 电流传感器 CSCA0600A000B15B01, 霍尔效应, -900 → +900A输出, ±15 V 直流电源


艾睿:
Open Loop Current Sensor AC/DC Current ±15V 4-Pin


Allied Electronics:
Current sensor inductive analogue 900A


儒卓力:
**I-SenseModule 600A OL U **


MASTER:
Open Loop Current Sensor AC/DC Current ±15V Automotive 4-Pin


Powell:
Sensors, Current Sensors, Open Loop


Electro Sonic:
Open Loop Current Sensor AC/DC Current ±15V Automotive 4-Pin


CSCA0600A000B15B01中文资料参数规格
技术参数

额定电流 600 A

供电电流 17.0 mA

通道数 1

工作温度Max 80 ℃

工作温度Min -10 ℃

精度 ±2 %

封装参数

引脚数 4

封装 Module

外形尺寸

长度 40 mm

宽度 35 mm

高度 29 mm

封装 Module

物理参数

工作温度 -10℃ ~ 80℃

外壳材质 Polyester

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 9030330040

数据手册

在线购买CSCA0600A000B15B01
型号: CSCA0600A000B15B01
描述:Open Loop Current Sensors The CSCA-A series of open loop current sensors from Honeywell are suitable for applications such as variable speed drives, over current protection, UPS and telecommunication power supplies, current feedback control systems and robotics.The CSCA-A series of open loop current sensors are based on the hall effect principles, a hall effect device produces an output voltage linearly related to the amplitude and phase of a magnetic field applied to it. The hall effect output is directly proportional to the amplitude and phase of the primary current. Measures ac, dc and impulse currents Low power consumption Compact size High level of electrical isolation between primary and secondary circuits Operating temperature -10 → +80 °C ### Honeywell 电流变换器
