1.5nF ±5% 100V NPO
* **Working Voltage:**
C0G - 50, 100, 200, 500, 1k, 1.5k, 2k, 2.5k, 3k
X7R - 50,100, 200, 500,1k, 1.5k, 2k, 2.5k, 3k
Z5U - 50, 100
* **Dielectric:**
C0G - 0± 30PPM / -55 C to + 125 C
X7R - ± 15% from -55 C to + 125 C
Z5U - ± 22% / - 56% from + 10 C to + 85 C
* ** Tolerance: **
C0G - ±0.5pF, ±1%,±2%, ±5%,±10%
X7R - ±10%, ± 20%, +80% / -20%, +100% / -0%
Z5U - ±20%, +80% / -20%
* **Lead Spacing:** .100LS, .200LS & .400LS
Multilayer ceramic capacitors are available in a variety of physical sizes and configurations, including leaded devices and surface mounted chips. Leaded styles include molded and conformally coated parts with axial and radial leads. Ceramic dielectric materials can be formulated with a wide range of characteristics. The EIA standard for ceramic dielectric capacitors RS-198 divides ceramic dielectrics into the following classes: Class I, Class II and Class III.额定电压DC 100 V
电容 1500 pF
容差 ±5 %
电介质特性 C0G/NP0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V

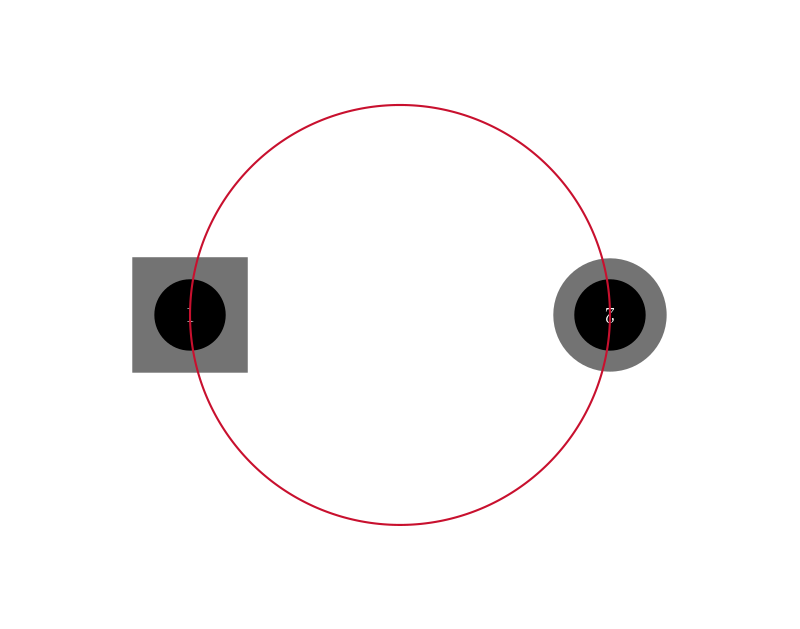

安装方式 Through Hole
封装 Radial
引脚间距 5.08 mm
长度 5.08 mm
宽度 5.08 mm
高度 6.6 mm
脚长度 7.00 mm
封装 Radial
引脚间距 5.08 mm
材质 NP0/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8532240060
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C322C152J1G5TA KEMET Corporation 基美 | 当前型号 | 当前型号 |
C322C152J2G5TA 基美 | 功能相似 | C322C152J1G5TA和C322C152J2G5TA的区别 |
C322C152J1G5CA 基美 | 功能相似 | C322C152J1G5TA和C322C152J1G5CA的区别 |
