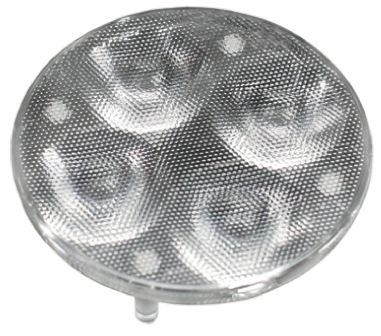

iL QUAK Series LED Lenses
The QUAK series from LEDiL, are a family of round LED lenses with a diameter of 50 mm. These multi-lens arrays are designed for use with four LEDs. They have a clear or diffused lens and offer a range of beam types from a spot to wide angle. QUAK lenses direct the light from an LED light source through the lens to achieve the desired beam emission type with a uniform output.
Made using an optical grade PMMA, the QUAK lenses offer a high UV and temperature resistance. They fasten into place using positioning pins and glue.
QUAK lenses have been designed and optimised for use with a variety of LEDs. Due to the rapidly changing nature of LED products customers are strongly advised to consult the latest manufacturer data for compatible LEDs.
### 注
The viewing angle produced the full angle measured at the half peak luminous intensity value will vary depending on the chip size, colour and position of the LED.
