CPC01GFH概述

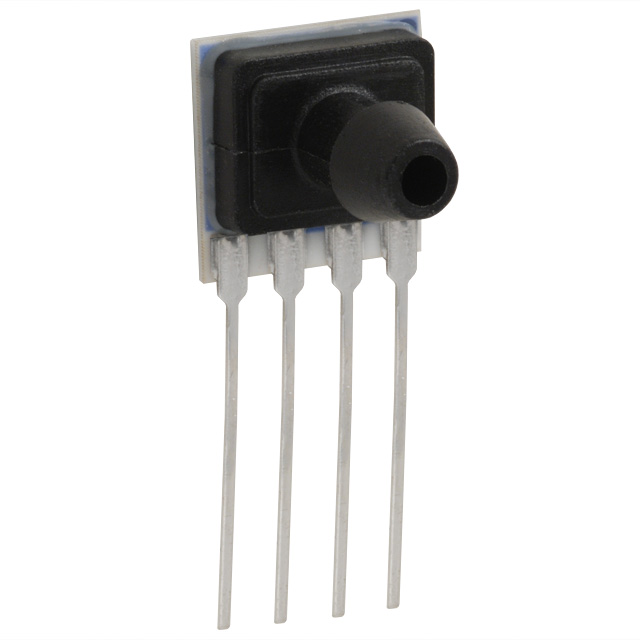

Peizoresistive Sensor, Gage, 0Psi Min, 1Psi Max, 0-18mV, Square, Through Hole Mount

**Uncompensated/Compensated and Compensated Calibrated:** The CPX/CPXL and the CPC/CPCL Series sensors integrate silicon micro-machined sensing technology, temperature compensation and calibration in a complete family of low cost packages. This series offers the most cost-effective solution for design requirements. These piezo resistive pressure sensors use micro-machined silicon chips mounted on a ceramic and protected with a plastic cap. Several tube arrangements with nylon housings are available for various pressure applications. On devices of 5 PSI and above, the top side of the chip is protected against humidity by a Silgel coating. While the sensors are designed for use with non-corrosive, nonionic pressure media, they accommodate many gases that are used in medical applications. The CPC Series is designed for the lowest cost and smallest profile. The standard packages have only a plastic cap for OEM applications. The CPC axial port option accommodates pressure measurements in tube applications. **Features:**

* Small Size

* Temperature Compensated

* Zero and Span Calibrated

* Millivolt Output

* Differential, Gauge and Absolute Pressure

* Constant Voltage Excitation

* High Impedance — Low Current

CPC01GFH中文资料参数规格
技术参数

电源电压DC 12.0 V

输出电压 ≤19.0 mV

工作温度Max 85 ℃

工作温度Min -25 ℃

精度 ±2 %

电源电压 3V ~ 16V

封装参数

安装方式 Through Hole

引脚数 4

封装 SIP-4

外形尺寸

封装 SIP-4

物理参数

工作温度 -25℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买CPC01GFH
型号: CPC01GFH
描述:Peizoresistive Sensor, Gage, 0Psi Min, 1Psi Max, 0-18mV, Square, Through Hole Mount
