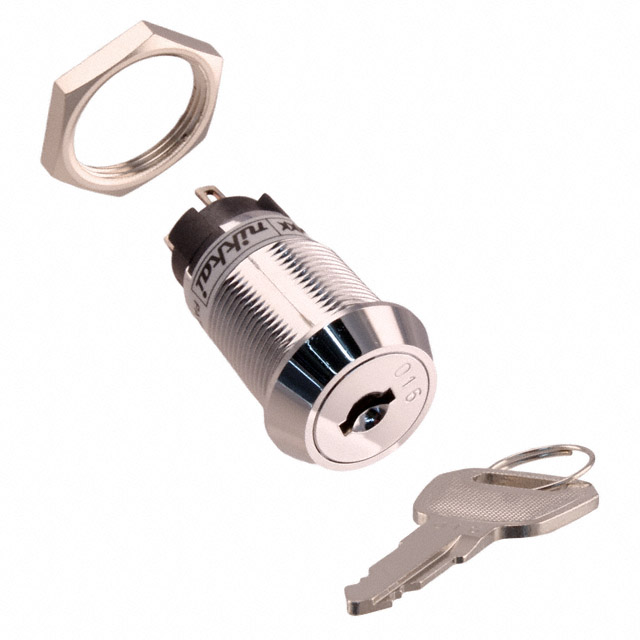

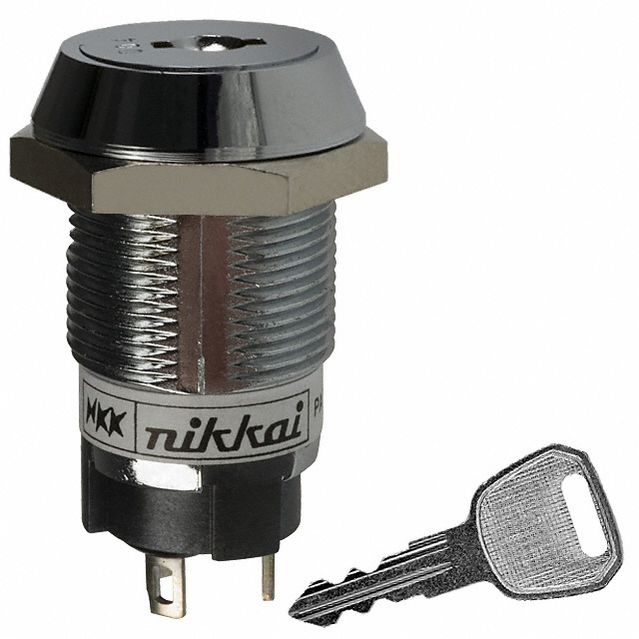

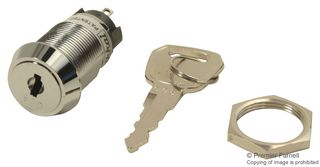

NKK SWITCHES CKL12BFW01 键锁开关, CK系列, SPDT, 开-无-开, 焊接, 3 A, 250 V
The is a single-pole double-throw High-security Keylock with flat actuator style. It will have a change to the identification label on the switch bodies to include the new logo. The change will effect all, both standard and custom.
e络盟:
键锁开关, 开-无-开, SPDT, CK系列, 2路, 焊接, 3 A
艾睿:
Switch Key Lock ON None ON SPDT 90
Allied Electronics:
Switch, KEYLOCK, HIGHT SECURITY, ON-NONE-ON, 1 REMOVABLE Position
富昌:
CK 系列 19 mm 开-空-开 高安全性 钥匙 开关 带平面操作杆
Chip1Stop:
Switch Key Lock ON None ON SPDT 90° Flat Key 3A 250VAC Solder Lug 30000Cycles Panel Mount
Newark:
The CKL12BFW01 is a single-pole double-throw High-security Keylock with flat actuator style. It will have a change to the identification label on the switch bodies to include the new logo. The change will effect all, both standard and custom.
Powell:
HIGH SECURITY KEYLOCK/SOLDER LUG
ICbanQ:
KEYSWITCH, 19MM, 2 POS
触点电镀 Silver
接触器类型 Key
额定电流 3 A
绝缘电阻 ≥100MΩ @500VDC
方向 Vertical
触点类型 SPDT
针脚数 2
接触电阻 ≤20 MΩ
触点额定电流 3 A
额定电流Max 3A @250VAC
工作温度Max 70 ℃
工作温度Min -25 ℃
额定电压 250 VAC
额定电压AC Max 250 V
接触电阻Max 20 mΩ
安装方式 Panel, Solder Lug
长度 22 mm
宽度 22 mm
高度 40 mm
直径 22.0 mm
触点材质 Silver
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CKL12BFW01 NKK 日本长野 | 当前型号 | 当前型号 |
S216R Multicomp | 功能相似 | CKL12BFW01和S216R的区别 |
