C1632X7R0J225M115AC

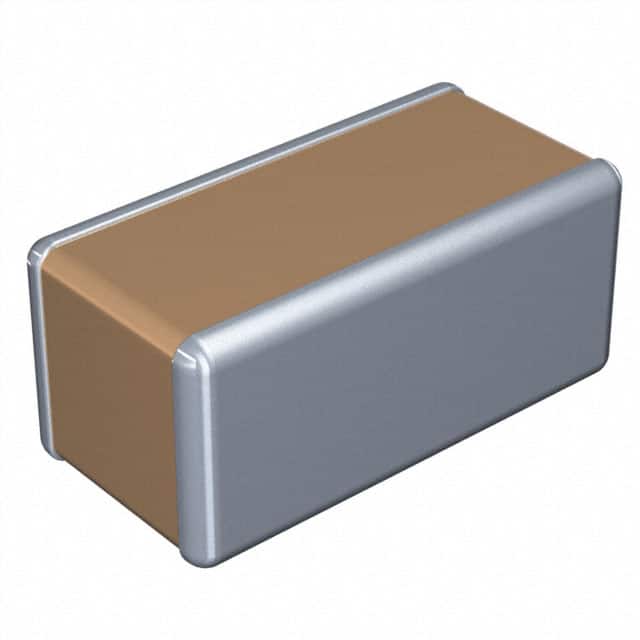

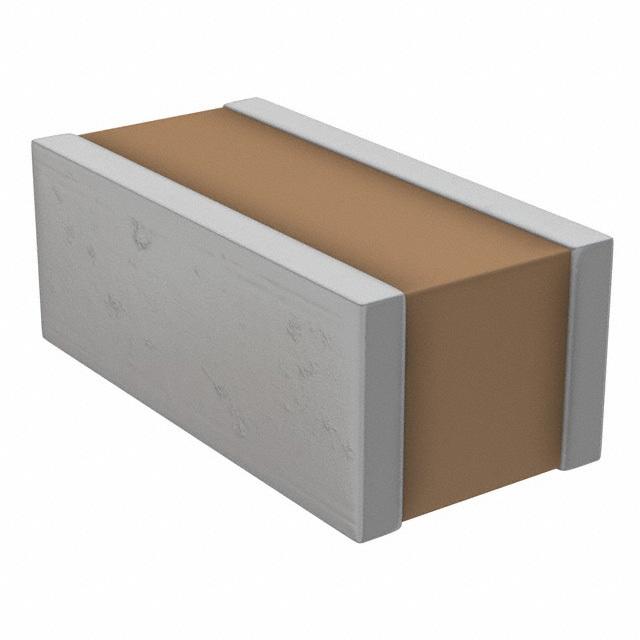

C1632X7R0J225M115AC图片1
C1632X7R0J225M115AC图片2
C1632X7R0J225M115AC图片3
C1632X7R0J225M115AC图片4
C1632X7R0J225M115AC图片5
C1632X7R0J225M115AC图片6
C1632X7R0J225M115AC图片7
C1632X7R0J225M115AC概述

0612 2.2uF ±20% 6.3V X7R

2.2µF ±20% 6.3V Ceramic Capacitor X7R 0612 1632 Metric


得捷:
CAP CER 2.2UF 6.3V X7R 0612


贸泽:
Multilayer Ceramic Capacitors MLCC - SMD/SMT 6.3V 2.2uF X7R 20% Flip chip 0612


艾睿:
Get more with less with TDK&s;s C1632X7R0J225M115AC multilayer ceramic capacitor which uses multiple layers of ceramic and metal to act as dielectric and electrodes. It can withstand a voltage of 6.3 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has a tolerance of 20%. This product is 1.6 mm long, 1.15 mm tall and 3.2 mm deep. The C1632X7R0J225M115AC MLCC capacitor has a wide terminal termination style. Its capacitance value is 2.2uF.


Verical:
Cap Ceramic 2.2uF 6.3V X7R 20% Wide Terminal SMD 0612 125C T/R


C1632X7R0J225M115AC中文资料参数规格
技术参数

额定电压DC 6.3 V

电容 2.2 µF

容差 ±20 %

电介质特性 X7R

工作温度Max 125 ℃

工作温度Min 55 ℃

额定电压 6.3 V

封装参数

安装方式 Surface Mount

引脚数 2

封装 0612

外形尺寸

长度 1.6 mm

宽度 3.2 mm

高度 1.15 mm

封装 0612

物理参数

材质 X7R/-55℃~+125℃

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Not Recommended for New Designs

包装方式 Tape & Reel TR

最小包装 2000

制造应用 旁通,去耦, Commercial Grade

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

C1632X7R0J225M115AC引脚图与封装图
C1632X7R0J225M115AC引脚图
C1632X7R0J225M115AC封装图

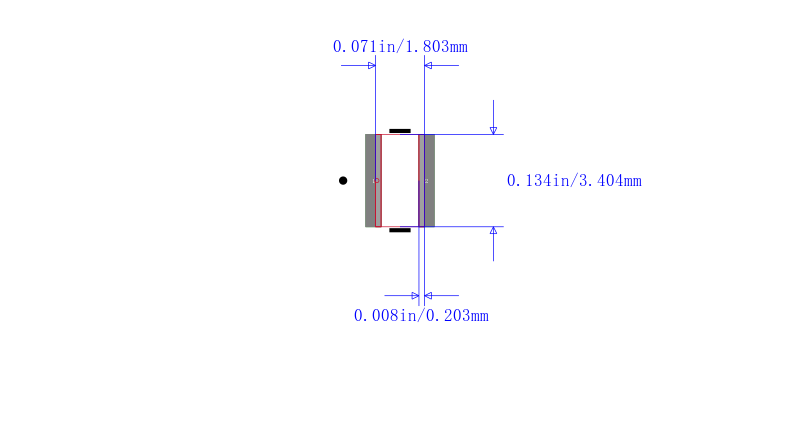

C1632X7R0J225M115AC封装焊盘图
在线购买C1632X7R0J225M115AC
型号: C1632X7R0J225M115AC
制造商: TDK 东电化
描述:0612 2.2uF ±20% 6.3V X7R
替代型号C1632X7R0J225M115AC
型号/品牌 代替类型 替代型号对比

C1632X7R0J225M115AC

TDK 东电化

当前型号

当前型号
