15nF ±10% 200V X7R
0.015 µF ±10% 200V 陶瓷器 X7R 径向
得捷:
CAP CER 0.015UF 200V X7R RADIAL
立创商城:
15nF ±10% 200V
艾睿:
Since this C330C153K2R5TA multilayer ceramic capacitor from Kemet has multiple layers of dielectric and electrodes, you&s;ll be getting high stability and low losses for resonant circuit applications. It can withstand a voltage of 200 VDC. Users like its outside bend wire form. This MLCC capacitor has a maximum operating temperature of 125 °C. This product comes packaged in bulk, so the parts will be stored loosely. Its capacitance value is 0.015uF. This product is 7.62Max mm long, 9.14Max mm tall and 3.81Max mm deep. The C330C153K2R5TA MLCC capacitor has a radial termination style. It has a tolerance of 10%.
安富利:
Cap Ceramic 0.015uF 200V X7R 10% Radial 5.08mm 125°C Bulk
Newark:
# KEMET C330C153K2R5TA Multilayer Ceramic Capacitor, 0.015 µF, 200 V, Goldmax, 300 Series, ± 10%, Radial Leaded, X7R
额定电压DC 200 V
电容 0.015 µF
容差 ±10 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 200 V
安装方式 Through Hole
封装 Radial
引脚间距 5.08 mm

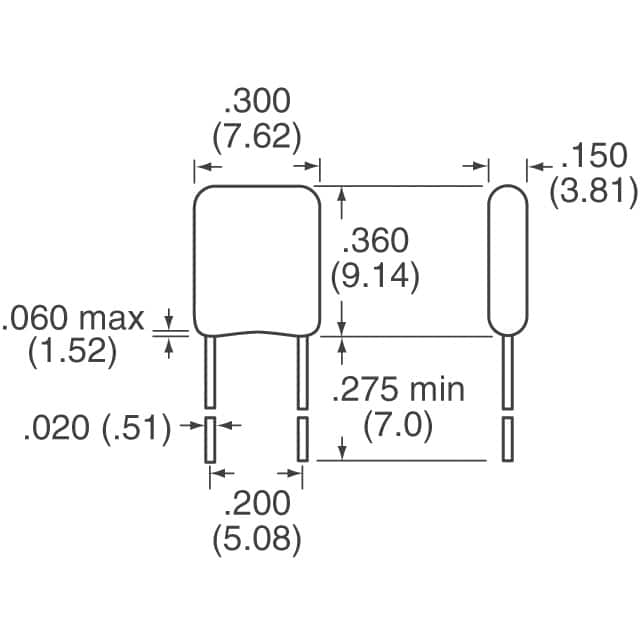

长度 7.11 mm
宽度 7.62 mm
高度 9.14 mm
脚长度 7.00 mm
封装 Radial
引脚间距 5.08 mm
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C330C153K2R5TA KEMET Corporation 基美 | 当前型号 | 当前型号 |
C330C153K2R5CA 基美 | 类似代替 | C330C153K2R5TA和C330C153K2R5CA的区别 |
