1210 150nF ±20% 630V X7T
0.15µF ±20% 630V Ceramic Capacitor X7T 1210 3225 Metric
得捷:
CAP CER 0.15UF 630V X7T 1210
艾睿:

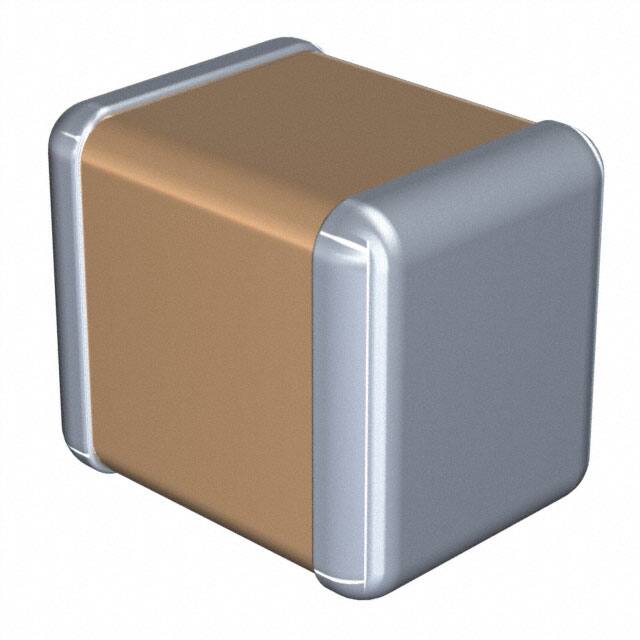

Do you need multiple capacitors for different uses in your electronics project? Look no further, this C3225X7T2J154M200AC multilayer ceramic capacitor from TDK has a multitude of uses for various applications! It can withstand a voltage of 630 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its capacitance value is 0.15uF. It has a tolerance of 20%. This product is 3.2 mm long, 2 mm tall and 2.5 mm deep.
Verical:
Cap Ceramic 0.15uF 630V X7T 20% Pad SMD 1210 125C T/R
额定电压DC 630 V
电容 150000 PF
容差 ±20 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 630 V
安装方式 Surface Mount
封装公制 3225
封装 1210
长度 3.2 mm
宽度 2.5 mm
高度 2 mm
封装公制 3225
封装 1210
材质 X7T/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
制造应用 Commercial Grade, Please refer to Part No., for Automotive use.
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C3225X7T2J154M200AC TDK 东电化 | 当前型号 | 当前型号 |
CGA6M1X7T2J154M200AC 东电化 | 类似代替 | C3225X7T2J154M200AC和CGA6M1X7T2J154M200AC的区别 |
