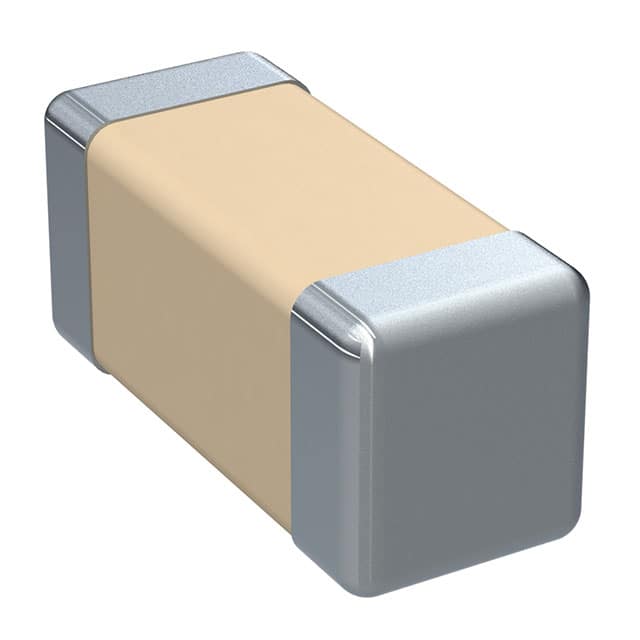

Cap Ceramic 680pF 100V C0G 2% SMD 0603 125℃ T/R
SMD Comm C0G, Ceramic, Commercial Grade, 680 pF, 2%, 100 VDC, C0G, SMD, MLCC, Ultra-Stable, Low Loss, Class I, 0603
立创商城:
680pF ±2% 100V
得捷:
CAP CER 680PF 100V NP0 0603
艾睿:
This C0603C681G1GACTU multilayer ceramic capacitor from Kemet can be used in multiple applications and for various purposes. It can withstand a voltage of 100 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep. It has a tolerance of 2%. Its capacitance value is 680pF.
安富利:
Cap Ceramic 680pF 100V C0G 2% SMD 0603 Paper T/R
额定电压DC 100 V
绝缘电阻 100 GΩ
电容 680 pF
容差 ±2 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Surface Mount
封装公制 1608
封装 0603
引脚间距 0.7 mm
长度 1.6 mm
宽度 1.6 mm
高度 0.8 mm
封装公制 1608
封装 0603
引脚间距 0.7 mm
介质材料 Ceramic
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C0603C681G1GACTU KEMET Corporation 基美 | 当前型号 | 当前型号 |
C0603C681J5GACTU 基美 | 功能相似 | C0603C681G1GACTU和C0603C681J5GACTU的区别 |
C0603C681J3GACTU 基美 | 功能相似 | C0603C681G1GACTU和C0603C681J3GACTU的区别 |
C0603C681G5GACTU 基美 | 功能相似 | C0603C681G1GACTU和C0603C681G5GACTU的区别 |
