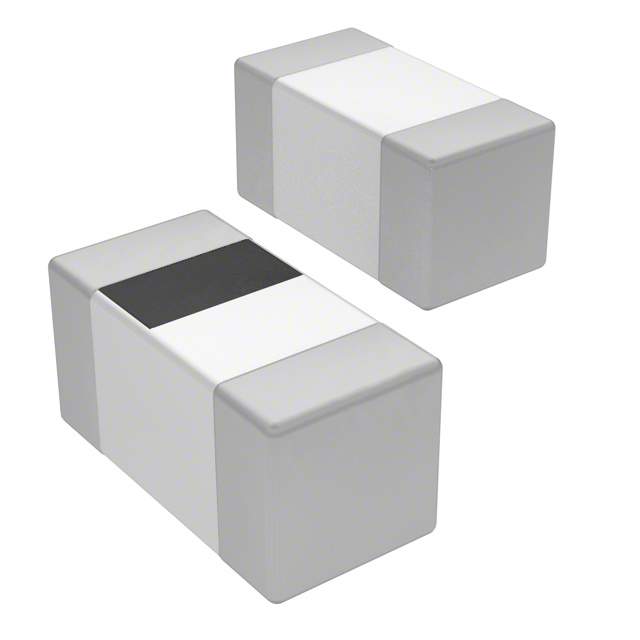

0402 2.4nH ±0.3nH
无屏蔽 多层 器 160 毫欧最大 0402(1005 公制)
得捷:
FIXED IND 2.4NH 300MA 160MOHM SM
艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this high frequency chip CIH05T2N4SNC surface mount inductor from Samsung Electro-Mechanics is perfect for you! This SMD inductor has an operating temperature range of -55 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has an inductance of 2.4n H. This device utilizes multi-layer technology. This SMD inductor has a maximum DC current of 300m A with a maximum resistance of 160m Ohm. This product is 1.05 mm long, 0.55 mm tall and 0.55 mm deep. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 6G Hz.
安富利:
Ind High Frequency Chip Multi-Layer 2.4nH 0.3nH 100MHz 8Q-Factor Ceramic 300mA 0402 Paper T/R
Win Source:
FIXED IND 2.4NH 300MA 160 MOHM
额定电流 300 mA
电感 2.4 nH
自谐频率 6 GHz
产品系列 CIH
电感公差 ±0.3 nH
测试频率 100 MHz
电阻DC) ≤160 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 0.16 Ω
安装方式 Surface Mount
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.55 mm
封装公制 1005
封装 0402
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
