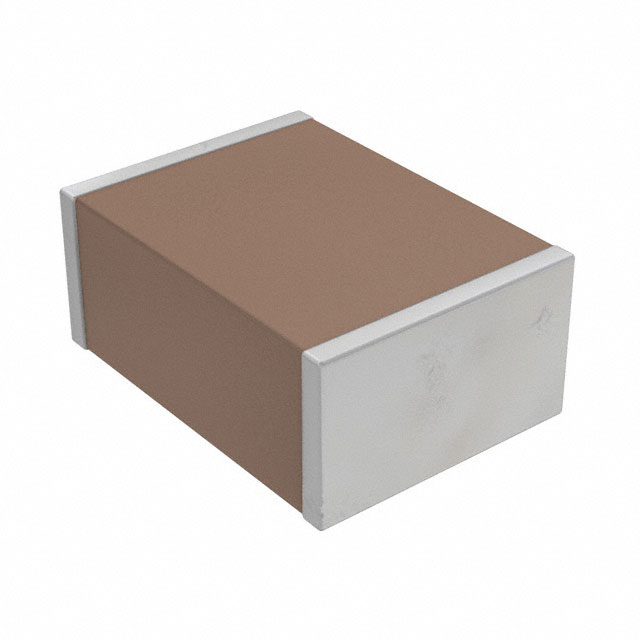

1812 220nF ±10% 250V X7R
0.22 µF ±10% 250V 陶瓷器 X7R 1812（4532 公制）
得捷:
CAP CER 0.22UF 250V X7R 1812
立创商城:
220nF ±10% 250V
艾睿:
Do you need a capacitor with high stability and low losses? Then this CGA8N3X7R2E224K230KA multilayer ceramic capacitor from TDK is the solution you are looking for! It can withstand a voltage of 250 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 4.5 mm long, 2.3 mm tall and 3.2 mm deep. Its capacitance value is 0.22uF. It has a tolerance of 10%.
安富利:
CAP 0.22UF 250V X7R 10% SMD 1812
Verical:
Cap Ceramic 0.22uF 250V X7R 10% Pad SMD 1812 125C Automotive T/R
额定电压DC 250 V
电容 220000 pF
容差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
安装方式 Surface Mount
封装公制 4832
封装 1812
长度 4.5 mm
宽度 3.2 mm
高度 2.3 mm
封装公制 4832
封装 1812
厚度 2.3 mm
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Production Not Recommended for New Design
包装方式 Tape & Reel TR
最小包装 500
制造应用 Automotive Grade, 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CGA8N3X7R2E224K230KA TDK 东电化 | 当前型号 | 当前型号 |
C4532X7R2E224K230KA 东电化 | 类似代替 | CGA8N3X7R2E224K230KA和C4532X7R2E224K230KA的区别 |
C4532X7R2E224K230KM 东电化 | 类似代替 | CGA8N3X7R2E224K230KA和C4532X7R2E224K230KM的区别 |
C4532X7R2E224KT5 东电化 | 功能相似 | CGA8N3X7R2E224K230KA和C4532X7R2E224KT5的区别 |
