1210 330nF ±10% 250V X7T
0.33µF ±10% 250V Ceramic Capacitor X7T 1210 3225 Metric
得捷:
CAP CER 0.33UF 250V X7T 1210
立创商城:
330nF ±10% 250V
艾睿:

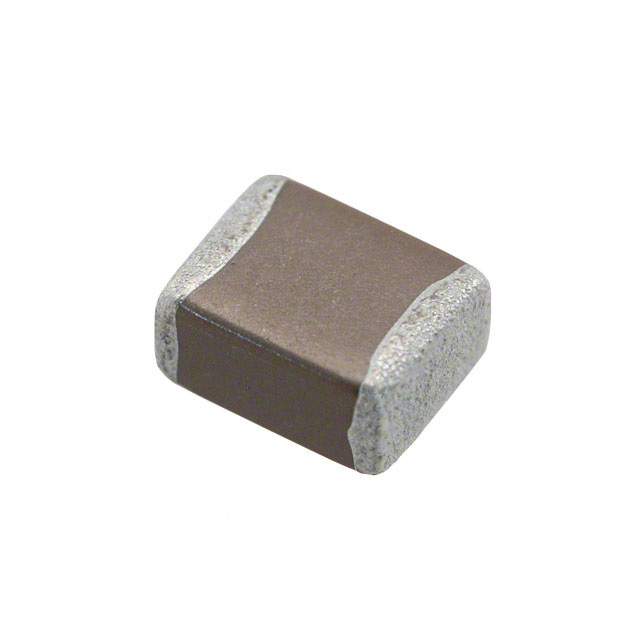

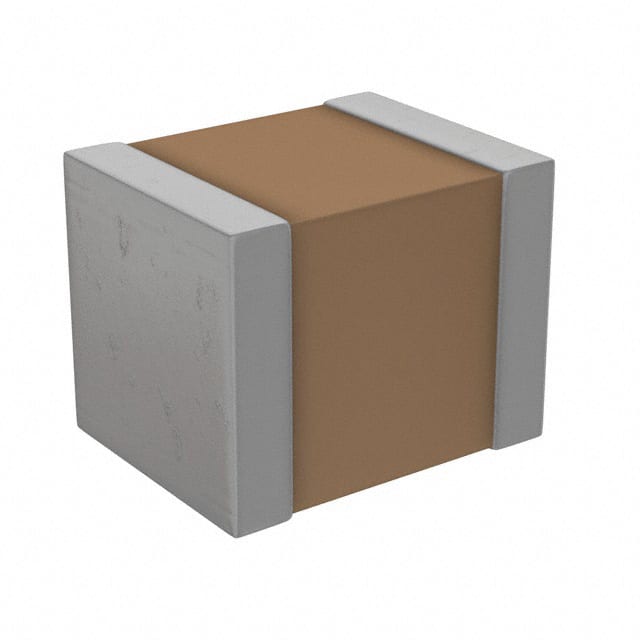

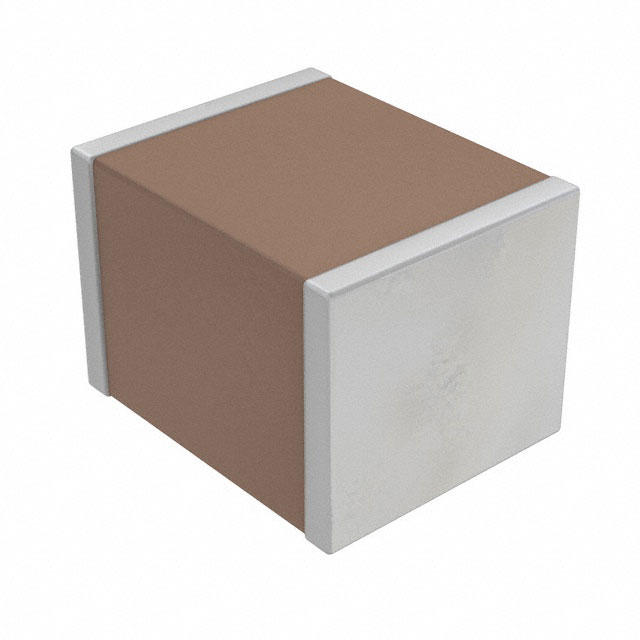

Do you need multiple capacitors for different uses in your electronics project? Look no further, this CGA6M3X7T2E334K200AA multilayer ceramic capacitor from TDK has a multitude of uses for various applications! It can withstand a voltage of 250 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its capacitance value is 0.33uF. This product is 3.2 mm long, 2 mm tall and 2.5 mm deep. It has a tolerance of 10%.
额定电压DC 250 V
电容 0.33 µF
容差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
安装方式 Surface Mount
封装公制 3225
封装 1210

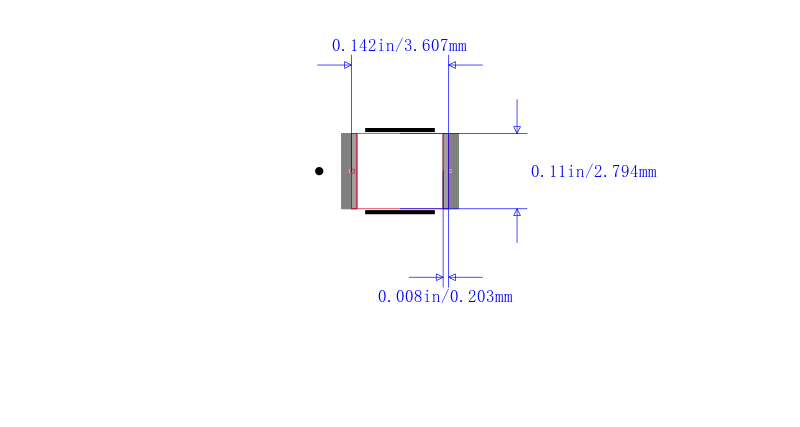

长度 3.2 mm
宽度 2.5 mm
高度 2 mm
封装公制 3225
封装 1210
材质 X7T/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
制造应用 Automotive Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CGA6M3X7T2E334K200AA TDK 东电化 | 当前型号 | 当前型号 |
C3225X7T2E334K200AA 东电化 | 完全替代 | CGA6M3X7T2E334K200AA和C3225X7T2E334K200AA的区别 |
