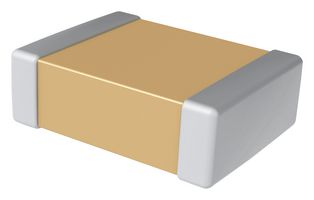

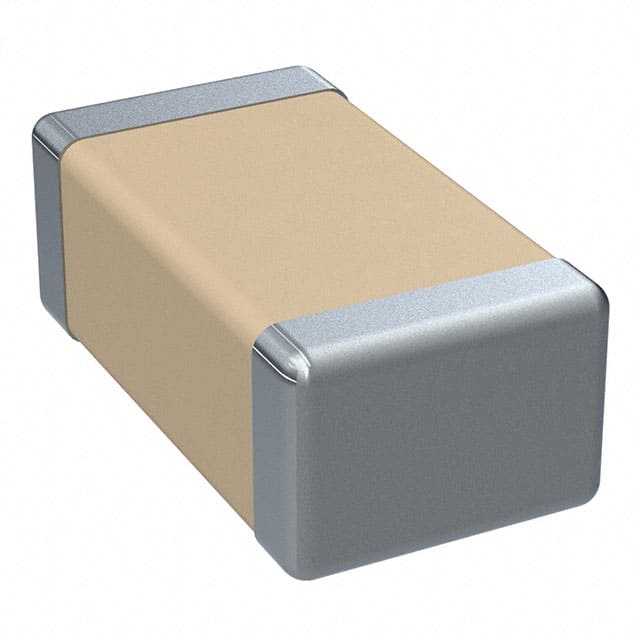

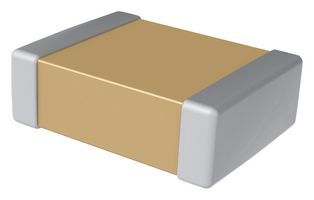

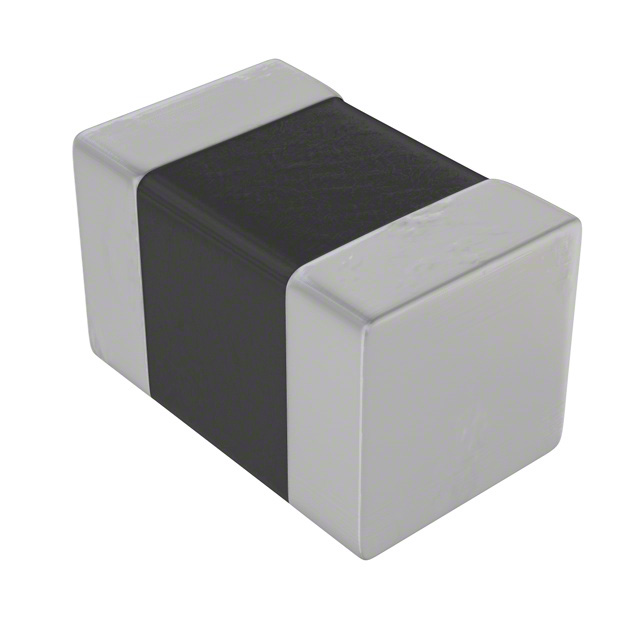

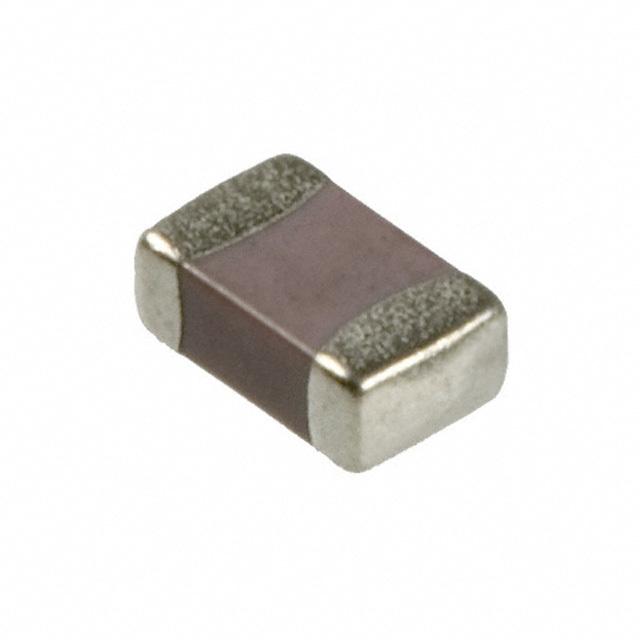

KEMET C0805C105K8NACTU 多层陶瓷电容器, 表面贴装, C系列, 1 µF, ± 10%, X8L, 10 V, 0805 [2012 公制]
The Kemet C series commercial grade multilayer ceramic chip capacitor is X8L dielectric material which exhibits predictable change in capacitance with respect to time and voltage. There will be minimal change in capacitance with reference to ambient temperature up to 125°C. Beyond 125°C, there will be wide variation in capacitance. X8L dielectric capacitors were developed for decoupling, bypass, filtering and critical applications where reliability at higher operating temperatures is concern. Standard end terminations use a nickel barrier layer and a matte tin finish to provide excellent soldering ability for customers. MLCCs are monolithic devices that consist of laminated layers of specially formulated, ceramic dielectric materials interspersed with a metal electrode system. The layered formation is then fired at high temperature to produce a sintered and volumetrically efficient capacitance device. A conductive termination is integrated on the chip for connection.
额定电压DC 10 V
绝缘电阻 500 MΩ
电容 1 µF
容差 ±10 %
电介质特性 X8L
工作温度Max 150 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount
引脚数 2
封装公制 2012
封装 0805
引脚间距 0.75 mm
长度 2 mm
宽度 1.25 mm
高度 1.25 mm
封装公制 2012
封装 0805
引脚间距 0.75 mm
介质材料 Ceramic
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, Consumer Electronics, 便携式器材, 消费电子产品, 电源管理, 工业, Industrial, Portable Devices, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C0805C105K8NACTU KEMET Corporation 基美 | 当前型号 | 当前型号 |
C0805C105J8NACTU 基美 | 类似代替 | C0805C105K8NACTU和C0805C105J8NACTU的区别 |
