ON Semiconductor### 数字电位计 - ON Semiconductor
数字电位计,
### 数字电位计 - ON Semiconductor
得捷:
IC POT DGTL 32TAP 2WIRE SC70-6
立创商城:
CAT5110SDI-50GT3
欧时:

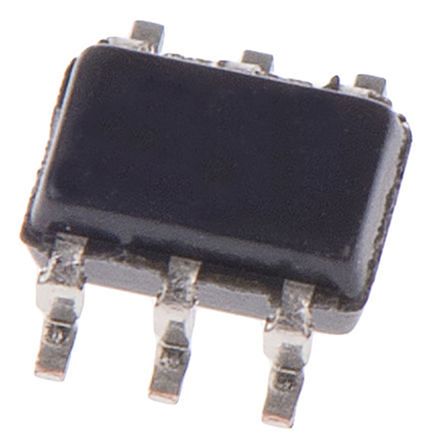

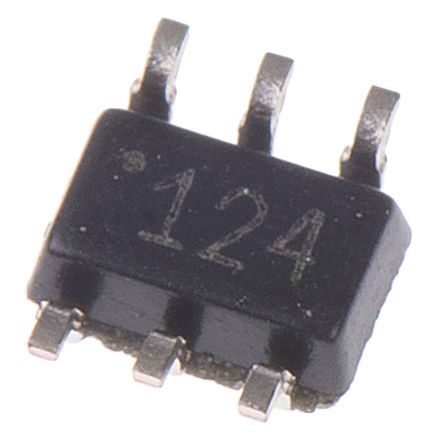

ON Semiconductor CAT5110SDI-50GT3 60kΩ 32位置 线性 数字电位计, 串行 2 线接口, 6引脚 SC-70封装
贸泽:
数字电位计 IC DPP MINIPOT 32 TAPS U/D
艾睿:
The CAT5110SDI-50GT3 digital potentiometer from ON Semiconductor makes it easy to adjust the resistance in your application. This digital potentiometer has a temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device uses a single power supply.
Allied Electronics:
CAT5110SDI-50GT3, Digi Potentiomtr 60kOhm 32-Pos Linear Serial-2Wire 6-Pin SC-70
Chip1Stop:
Digital Potentiometer 32POS 50KOhm Single 6-Pin SC-70 T/R
电源电压DC 2.70V min
无卤素状态 Halogen Free
电路数 1
针脚数 32
电阻 50 kΩ
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 5.5V
安装方式 Surface Mount
引脚数 6
封装 SC-70-6
长度 2.2 mm
宽度 1.35 mm
高度 1 mm
封装 SC-70-6
工作温度 -40℃ ~ 85℃
温度系数 ±200 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 LCD screen adjustment, Volume control, Line impedance matching, Gain adjustment, Mechanical potentiometer replacement
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CAT5110SDI-50GT3 ON Semiconductor 安森美 | 当前型号 | 当前型号 |
CAT5110SDI-50-GT3 安森美 | 功能相似 | CAT5110SDI-50GT3和CAT5110SDI-50-GT3的区别 |
