CAT5124TBI-50GT3

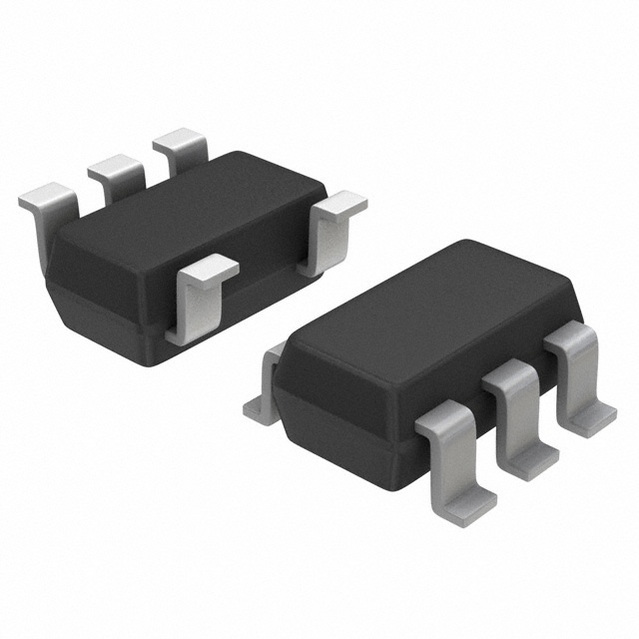

CAT5124TBI-50GT3图片1
CAT5124TBI-50GT3图片2
CAT5124TBI-50GT3图片3
CAT5124TBI-50GT3图片4
CAT5124TBI-50GT3概述

Digital Potentiometer 50KΩ 32POS Volatile Linear 6Pin SOT-23 T/R

The CAT5124 linear-taper digital POT performs the same function as a mechanical potentiometer or a variable resistor. This device consists of a fixed resistor and a wiper contact with 32-tap points that are digitally controlled through a 2-wire up/down serial interface.The CAT5124 is configured as a variable resistor.Three resistance values are available: 10 kΩ, 50 kΩ and 100 kΩ.

Features

---

 |

.
0.3 µA Ultra-low standby current
.
Single-supply operation: 2.7 V to 5.5 V
.
Glitchless switching between resistor taps
.
Power-on reset to midscale
.
2-Wire up/down serial interface
.
Resistance values: 10 kΩ, 50 kΩ and 100 kΩ
CAT5124TBI-50GT3中文资料参数规格
技术参数

无卤素状态 Halogen Free

电路数 1

针脚数 32

电阻 50 kΩ

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 2.7V ~ 5.5V

封装参数

安装方式 Surface Mount

引脚数 6

封装 SOT-23-5

外形尺寸

高度 1.3 mm

封装 SOT-23-5

物理参数

工作温度 -40℃ ~ 85℃

温度系数 ±30 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 Gain adjustment, LCD screen adjustment, Mechanical potentiometer replacement, Line impedance matching, Volume control

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

CAT5124TBI-50GT3引脚图与封装图

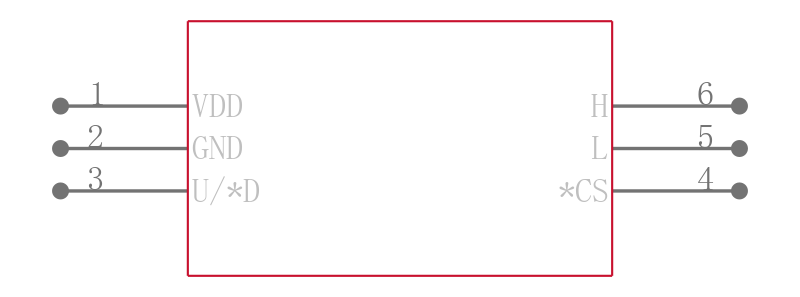

CAT5124TBI-50GT3引脚图
CAT5124TBI-50GT3封装图

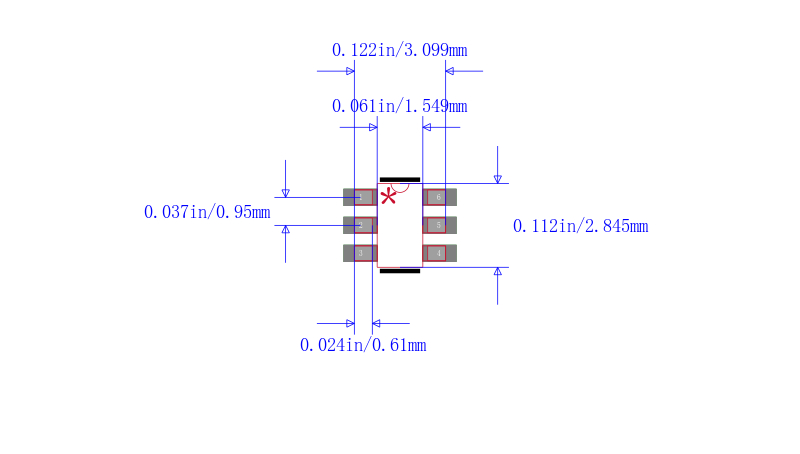

CAT5124TBI-50GT3封装焊盘图
