CAT5273ZI-50-GT3

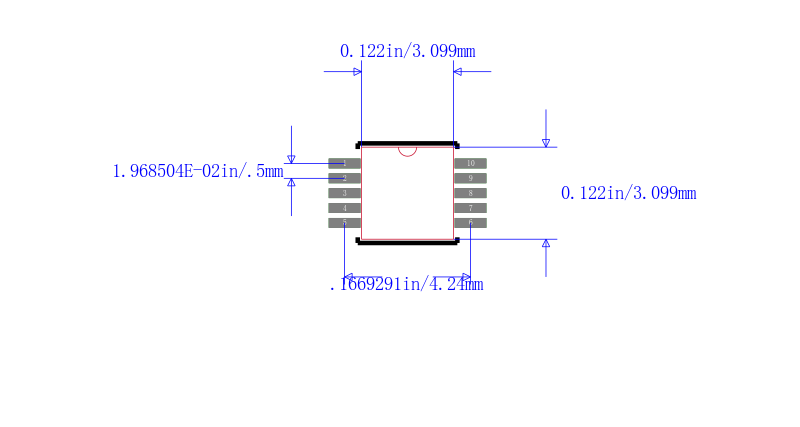

Digital Potentiometer 50KΩ 256POS Volatile Linear 10Pin MSOP T/R

The CAT5273 is a dual 256-position linear taper digital POT ideally suited for replacing mechanical potentiometers and variable resistors. The wiper settings are controlled through an IC-compatible digital interface. Upon power-up, the wiper assumes a midscale position and may be repositioned anytime after the power is stable. The device can be programmed to go to a shutdown state during operation. The CAT5273 operates from 2.7 V to 5.5 V, while consuming less than 2 µA. This low operating current, combined with a small package footprint, makes the CAT5273 ideal for battery-powered portable applications. The CAT5271, designed as a pin for pin replacement for the AD5248, operates over the -40°C to +85°C industrial temperature range.

Features |   | Benefits

---|---|---

 | |  | |  |

.

Dual 256-position

|   |

.

Offers high-resolution adjustment

.

End-to-End Resistance: 50 kΩ, 100 kΩ

|   |

.

I2C Compatible Interface

|   |

.

Power-on Preset to Midscale

|   |

.

Single Supply 2.7 V to 5.5 V

|   |

.

Low Temperature Coefficient 100 ppm/°C

|   |

.

Low Power, IDD 2 A max

|   |

.

Wide Operating Temperature -40°C to +85°C

|   |
