CAT5113 系列 100 抽头 100 Kohm 串行接口 数字电位器 - PDIP-8
The CAT5113 is a single digital POT designed as an electronic replacement for mechanical potentiometers. Ideal for automated adjustments on high volume production lines, they are also well suited for applications where equipment requiring periodic adjustment is either difficult to access or located in a hazardous or remote environment.The CAT5113 contains a 100-tap series resistor array connected between two terminals R. An up/down counter and decoder that are controlled by three input pins, determines which tap is connected to the wiper, R. The CAT5113 wiper is buffered by an op amp that operates rail to rail. The wiper setting, stored in non-volatile NVRAM memory, is not lost when the device is powered down and is automatically recalled when power is returned. The wiper can be adjusted to test new system values without affecting the stored setting. Wiper-control of the CAT5113 is accomplished with three input control pins, input increments the wiper in the direction which is determined by the logic state of the U/ input is used to select the device and also store the wiper position prior to power down.The digital POT can be used as a three-terminal resistive divider or as a two-terminal variable resistor.
Features
---
|
容差 ±20 %
无卤素状态 Halogen Free
供电电流 0.1 mA
电路数 1
针脚数 100
电阻 100 kΩ
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.5V ~ 6V
电源电压Max 6 V
电源电压Min 2.5 V
安装方式 Through Hole

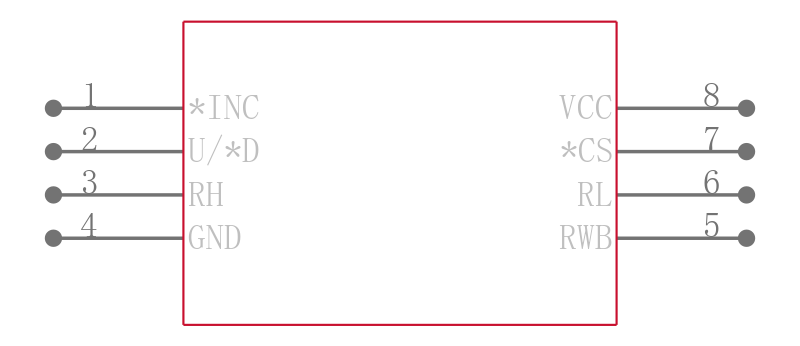

引脚数 8

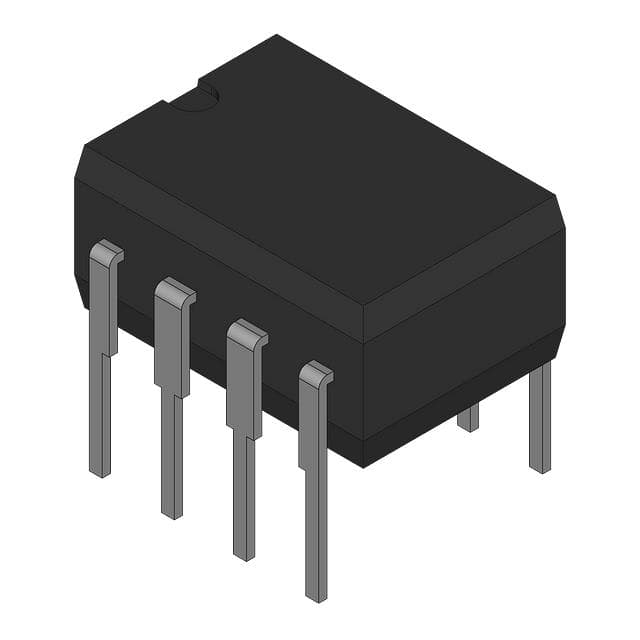

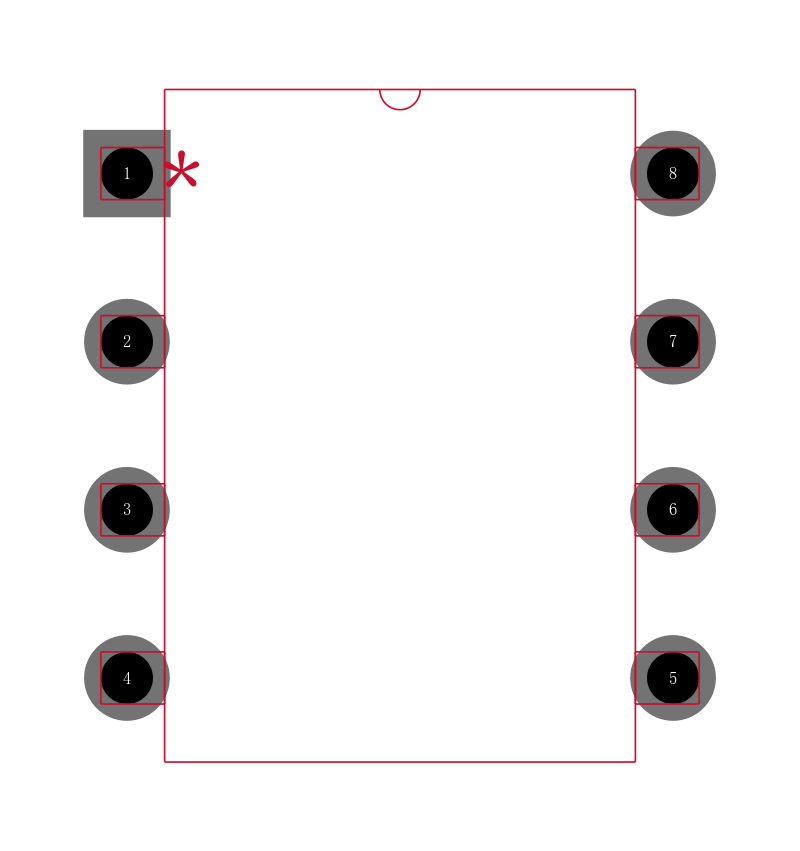

封装 PDIP-8
长度 9.27 mm
宽度 6.35 mm
高度 3.3 mm
封装 PDIP-8
工作温度 -40℃ ~ 85℃
温度系数 ±300 ppm/℃
产品生命周期 Active
包装方式 Tube
制造应用 Automated product calibration, Programmable analog functions, Offset, gain and zero control, Tamper-proof calibrations, Contrast, brightness and volume controls, Remote control adjustments, Motor controls and feedback systems
RoHS标准 RoHS Compliant
含铅标准 Lead Free
