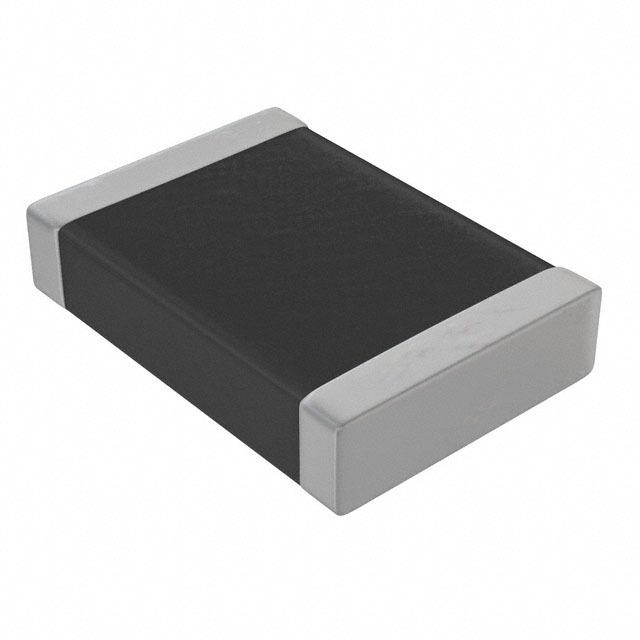

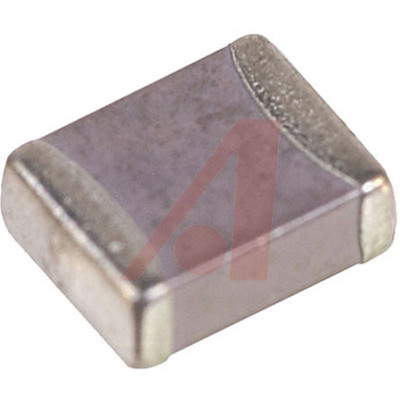

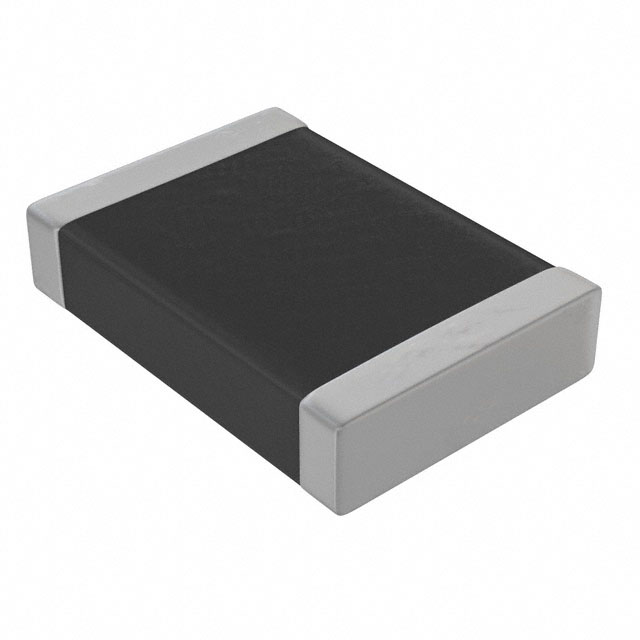

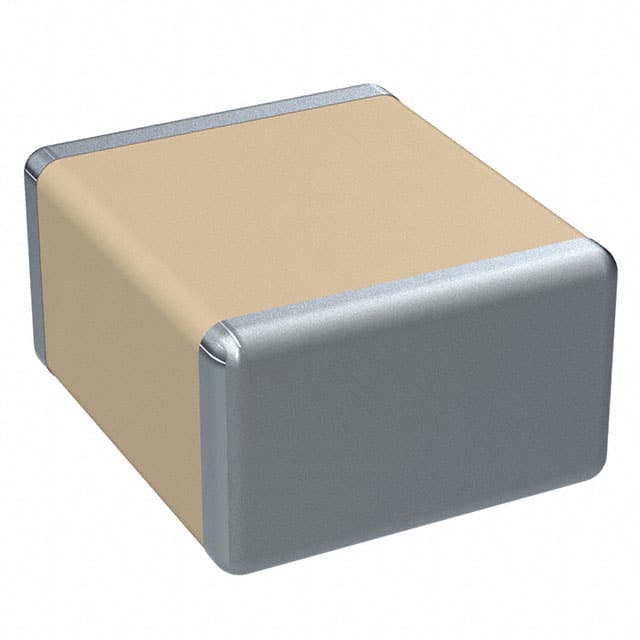

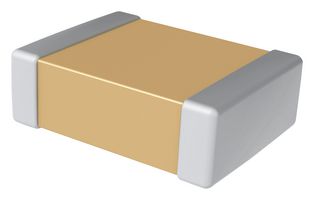

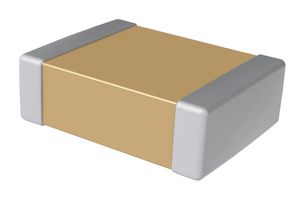

KEMET C1812C104KARACTU CERAMIC CAPACITOR 0.1UF, 250V, X7R, 10%, 1812 新
±10% 250V 陶瓷器 X7R 1812(4532 公制)
立创商城:
100nF ±10% 250V
得捷:
CAP CER 0.1UF 250V X7R 1812
e络盟:
KEMET C1812C104KARACTU CERAMIC CAPACITOR 0.1UF, 250V, X7R, 10%, 1812 新
艾睿:
This C1812C104KARACTU multilayer ceramic capacitor from Kemet offers high stability and low losses for resonant circuit applications. It can withstand a voltage of 250 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a tolerance of 10%. Its capacitance value is 0.1uF. This product is 4.5 mm long, 1 mm tall and 3.2 mm deep.
Allied Electronics:
Capacitors; Ceramic SMT; Tip and Ring; .100uF 250V; 10%; X7R; TR
Verical:
Cap Ceramic 0.1uF 250V X7R 10% Pad SMD 1812 125C T/R
Newark:
# KEMET C1812C104KARACTU SMD Multilayer Ceramic Capacitor, 1812 [4532 Metric], 0.1 µF, 250 V, ± 10%, X7R, C Series
额定电压DC 250 V
绝缘电阻 10 GΩ
电容 0.1 µF
容差 ±10 %
额定功率 0.5 W
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
安装方式 Surface Mount
引脚数 2
封装公制 4532
封装 1812
长度 4.50 mm
宽度 3.2 mm
高度 1 mm
封装公制 4532
封装 1812
介质材料 Ceramic
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C1812C104KARACTU KEMET Corporation 基美 | 当前型号 | 当前型号 |
QMK432B7104KM-T 太诱 | 完全替代 | C1812C104KARACTU和QMK432B7104KM-T的区别 |
1812PC104KAT1A 艾维克斯 | 完全替代 | C1812C104KARACTU和1812PC104KAT1A的区别 |
1812PC104KAZ1A 艾维克斯 | 完全替代 | C1812C104KARACTU和1812PC104KAZ1A的区别 |
