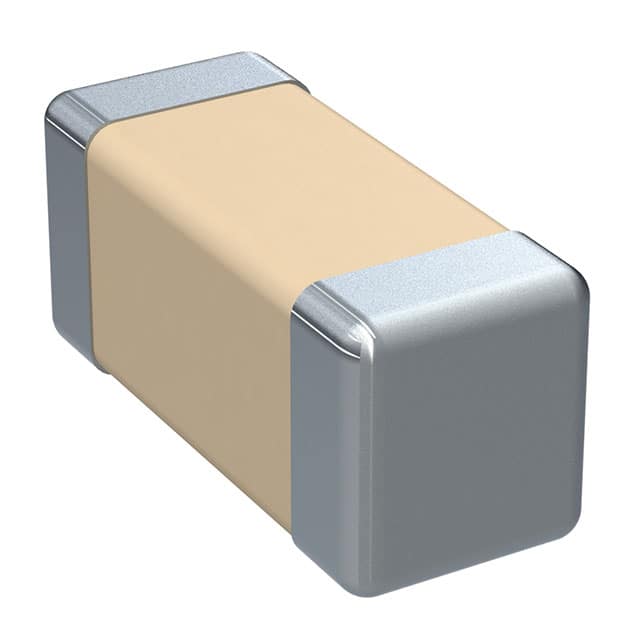

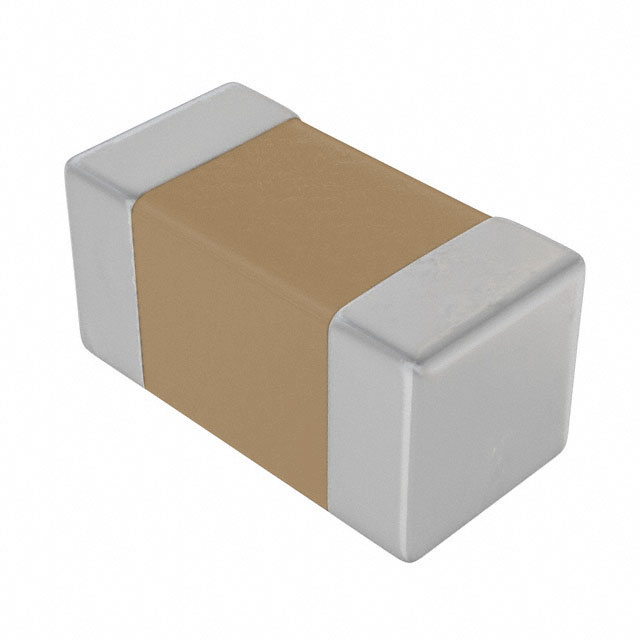

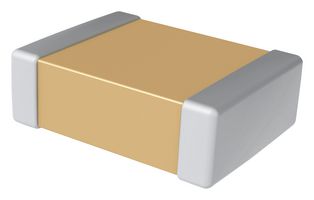

多层陶瓷电容器, 表面贴装, 22 pF, 100 V, 0603 [1608 公制], ± 1%, C0G / NP0, C系列KEMET
SMD Comm C0G, Ceramic, Commercial Grade, 22 pF, 1%, 100 VDC, C0G, SMD, MLCC, Ultra-Stable, Low Loss, Class I, 0603
立创商城:
22pF ±1% 100V
得捷:
CAP CER 22PF 100V C0G/NP0 0603
贸泽:
多层陶瓷电容器MLCC - SMD/SMT 100V 22pF 0603 C0G 1%
e络盟:
多层陶瓷电容器, 表面贴装, 22 pF, 100 V, 0603 [1608 公制], ± 1%, C0G / NP0, C系列KEMET
艾睿:
This C0603C220F1GACTU multilayer ceramic capacitor from Kemet is available with a variety of capacitance values, voltage ratings, package sizes, and other parameters. It can withstand a voltage of 100 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep. It has a tolerance of 1%. Its capacitance value is 22pF.
Verical:
Cap Ceramic 22pF 100V C0G 1% Pad SMD 0603 125C Extreme Low ESR T/R
Newark:
# KEMET C0603C220F1GACTU SMD Multilayer Ceramic Capacitor, 0603 [1608 Metric], 22 pF, 100 V, ± 1%, C0G / NP0, C Series New
额定电压DC 100 V
绝缘电阻 100 GΩ
电容 22 pF
容差 ±1 %
电介质特性 C0G/NP0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Surface Mount
封装公制 1608
封装 0603
引脚间距 0.7 mm
长度 1.6 mm
宽度 0.8 mm
高度 0.8 mm
封装公制 1608
封装 0603
引脚间距 0.7 mm
介质材料 Ceramic
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C0603C220F1GACTU KEMET Corporation 基美 | 当前型号 | 当前型号 |
06031A220FAT2A 艾维克斯 | 类似代替 | C0603C220F1GACTU和06031A220FAT2A的区别 |
C0603C220J1GACTU 基美 | 类似代替 | C0603C220F1GACTU和C0603C220J1GACTU的区别 |
MCMT18N220F101CT Multicomp | 类似代替 | C0603C220F1GACTU和MCMT18N220F101CT的区别 |
