四路数字可编程电位计( DPP⑩ )与64丝锥和IC接口 Quad Digitally Programmable Potentiometers DPP™ with 64 Taps and I²C Interface
The CAT5409 is four digital POTs integrated with control logic and 16 bytes of NVRAM memory. A separate 6-bit control register WCR independently controls the wiper tap position for each digital POT. Associated with each wiper control register are four 6-bit non-volatile memory data registers DR used for storing up to four wiper settings. Writing to the wiper control register or any of the non-volatile data registers is via a 2-wire serial bus I²C-like. On power-up, the contents of the first data register DR0 for each of the four potentiometers is automatically loaded into its respective wiper control register WCR. pin protects against inadvertent programming of the data register.The CAT5409 can be used as a potentiometer or as a two terminal, variable resistor. It is intended for circuit level or system level adjustments in a wide variety of applications.
Features
---
|
无卤素状态 Halogen Free
供电电流 1 mA
电路数 4
针脚数 64
电阻 10 kΩ
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.5V ~ 6V
电源电压Max 6 V
电源电压Min 2.5 V
安装方式 Surface Mount

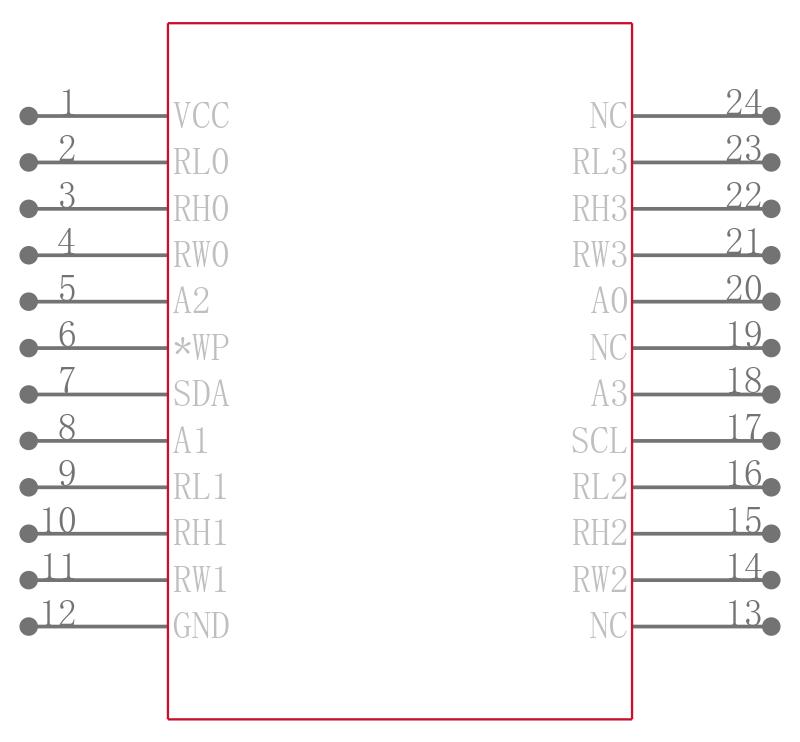

引脚数 24
封装 SOIC-24
长度 15.4 mm
宽度 7.6 mm
高度 2.55 mm
封装 SOIC-24
工作温度 -40℃ ~ 85℃
温度系数 ±300 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Audio Equipment, Industrial Controls
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
