CAT812STBI-T3概述

4引脚微处理器电源监控电路,带有手动复位 4-Pin Microprocessor Power Supply Supervisors with Manual Reset

Thanks to , your circuit can return to normal functionality in case of processor failure with the microprocessor supervisory circuit. This device has a maximum power dissipation of 320 mW. Its maximum power dissipation is 320 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device has a minimum operating supply voltage of 1.2 V and a maximum of 5.5 V. It has a typical reset threshold voltage of 2.93 V, with a minimum of 2.89 V and a maximum of 2.96 V.

CAT812STBI-T3中文资料参数规格
技术参数

电源电压DC 1.20V min

供电电流 15.0 µA

耗散功率 320 mW

阈值电压 2.93 V

复位电压Min 2.89 V

复位电压Max 2.96 V

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 320 mW

电源电压Max 5.5 V

电源电压Min 1.2 V

封装参数

安装方式 Surface Mount

引脚数 4

封装 TO-253-4

外形尺寸

长度 2.9 mm

宽度 1.3 mm

高度 0.9 mm

封装 TO-253-4

物理参数

工作温度 -40℃ ~ 85℃ TA

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

CAT812STBI-T3引脚图与封装图

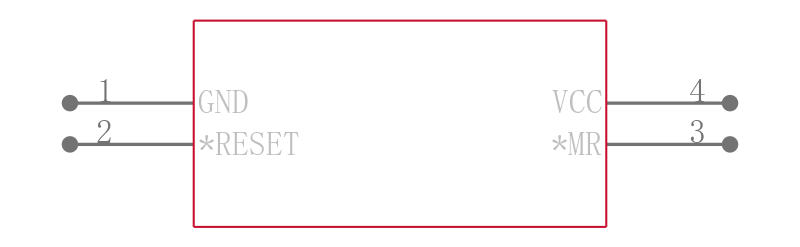

CAT812STBI-T3引脚图

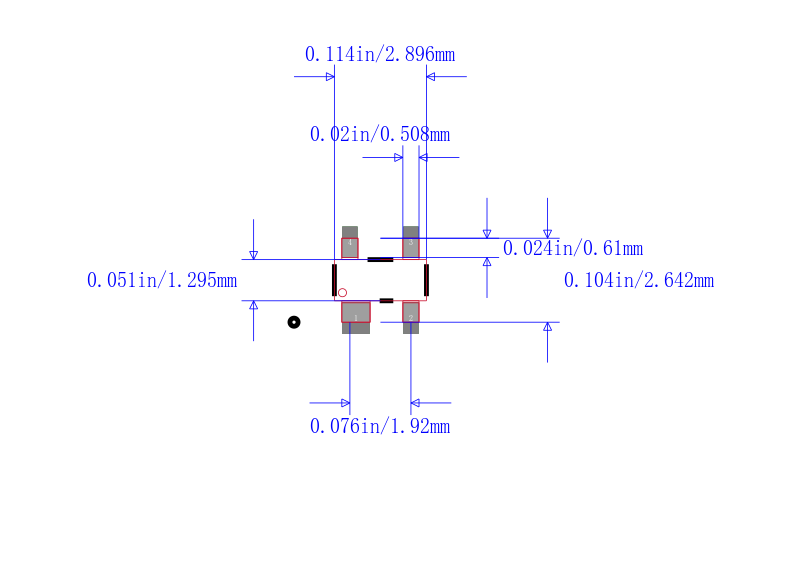

CAT812STBI-T3封装图
CAT812STBI-T3封装焊盘图
