3引脚微处理器电源监控 3-Pin Microprocessor Power Supply Supervisors
Take control of a circuit with a failed core processor with the microprocessor supervisory circuit from . This device has a maximum power dissipation of 320 mW. Its maximum power dissipation is 320 mW. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a typical reset threshold voltage of 3.08 V, with a minimum of 3.04 V and a maximum of 3.11 V. This device has a minimum operating supply voltage of 1.2 V and a maximum of 5.5 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 1.20V min
供电电流 15.0 µA
耗散功率 320 mW
阈值电压 3.08 V
复位电压Min 3.04 V
复位电压Max 3.11 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 320 mW
电源电压Max 5.5 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 3

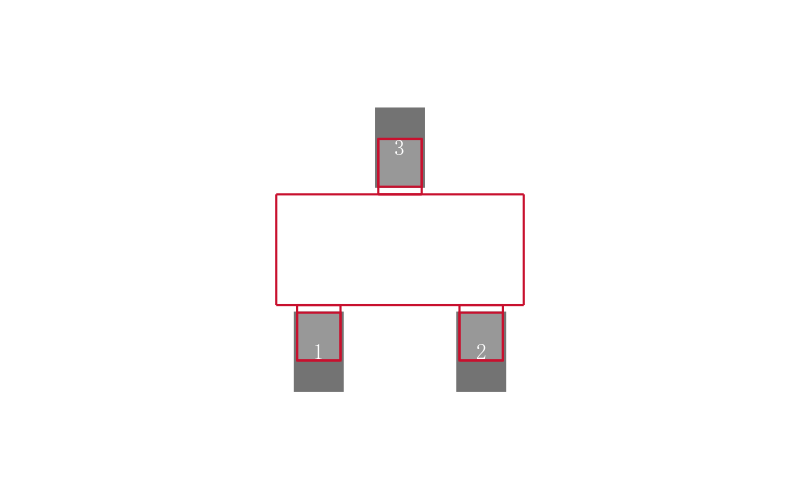

封装 SOT-23-3
长度 3.04 mm
宽度 1.4 mm
高度 1.12 mm
封装 SOT-23-3
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CAT803TTBI-T3 ON Semiconductor 安森美 | 当前型号 | 当前型号 |
NCP803SN463T1G 安森美 | 类似代替 | CAT803TTBI-T3和NCP803SN463T1G的区别 |
NCP803SN308T1G 安森美 | 类似代替 | CAT803TTBI-T3和NCP803SN308T1G的区别 |
NCP803SN438T1G 安森美 | 类似代替 | CAT803TTBI-T3和NCP803SN438T1G的区别 |
