1206 33nF ±5% 100V C0G
0.033µF ±5% 100V Ceramic Capacitor C0G, NP0 1206 3216 Metric
得捷:
CAP CER 0.033UF 100V C0G 1206
立创商城:
33nF ±5% 100V
艾睿:

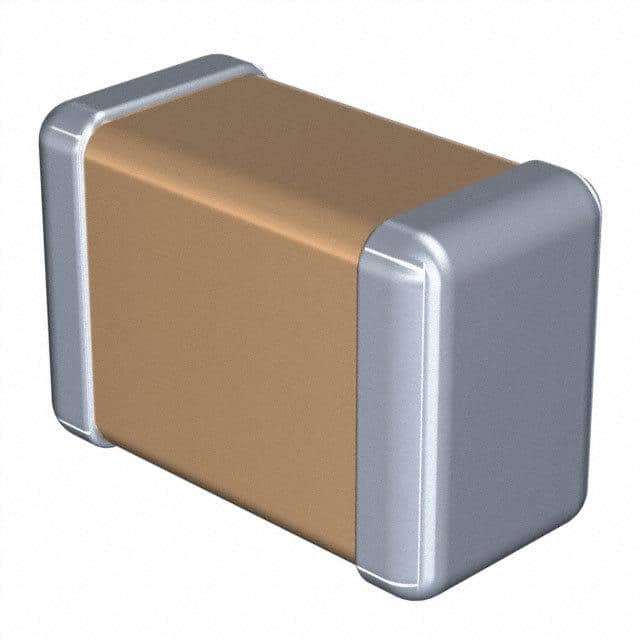

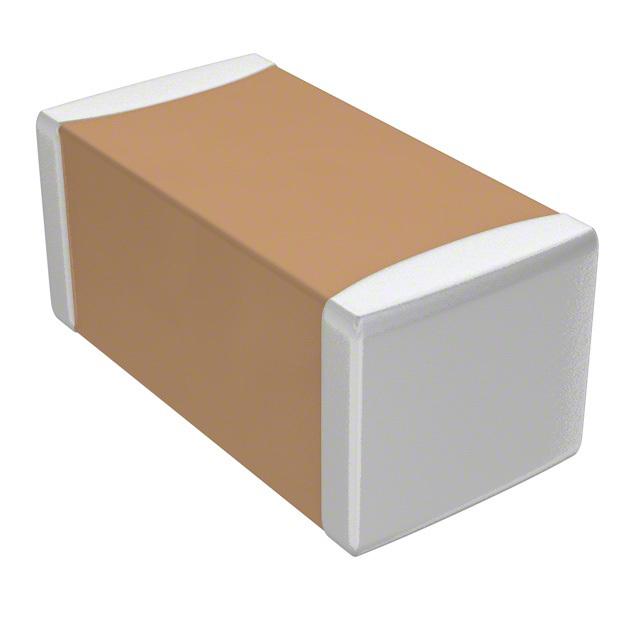

Do you need a capacitor with a large capacitance but in a small package? Then you must be looking for this C3216C0G2A333J160AA multilayer ceramic capacitor from TDK! It can withstand a voltage of 100 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its capacitance value is 0.033uF. This product is 3.2 mm long, 1.6 mm tall and 1.6 mm deep. It has a tolerance of 5%.
Verical:
Cap Ceramic 0.033uF 100V C0G 5% Pad SMD 1206 125C T/R
儒卓力:
**KC 33nF 1206 5% 100V NP0 **
额定电压DC 100 V
电容 33000 PF
容差 ±5 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.6 mm
封装公制 3216
封装 1206
厚度 1.6 mm
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C3216C0G2A333J160AA TDK 东电化 | 当前型号 | 当前型号 |
C3216NP02A333J160AA 东电化 | 类似代替 | C3216C0G2A333J160AA和C3216NP02A333J160AA的区别 |
CGA5L2C0G2A333J160AA 东电化 | 类似代替 | C3216C0G2A333J160AA和CGA5L2C0G2A333J160AA的区别 |
