CAT809ZSDI-T3

CAT809ZSDI-T3图片1
CAT809ZSDI-T3图片2
CAT809ZSDI-T3图片3
CAT809ZSDI-T3图片4
CAT809ZSDI-T3概述

3引脚微处理器电源监控 3-Pin Microprocessor Power Supply Supervisors

By using the microprocessor supervisory circuit from your circuit will remain safe if something happens to the main processor. This device has a maximum power dissipation of 175 mW. Its maximum power dissipation is 175 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device has a minimum operating supply voltage of 1.2 V and a maximum of 5.5 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a typical reset threshold voltage of 2.32 V, with a minimum of 2.28 V and a maximum of 2.35 V.

CAT809ZSDI-T3中文资料参数规格
技术参数

供电电流 0.015 mA

耗散功率 0.175 W

阈值电压 2.32 V

复位电压Min 2.28 V

复位电压Max 2.35 V

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 175 mW

封装参数

安装方式 Surface Mount

引脚数 3

封装 SC-70-3

外形尺寸

封装 SC-70-3

物理参数

工作温度 -40℃ ~ 85℃ TA

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

CAT809ZSDI-T3引脚图与封装图

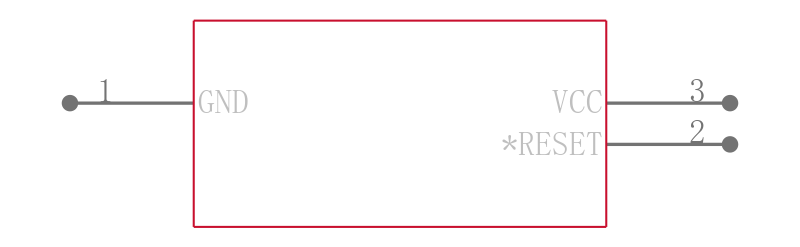

CAT809ZSDI-T3引脚图

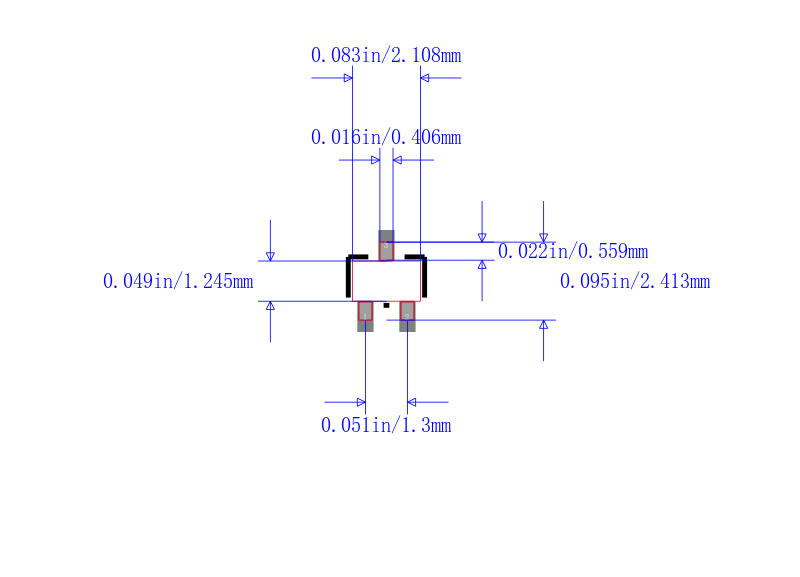

CAT809ZSDI-T3封装图

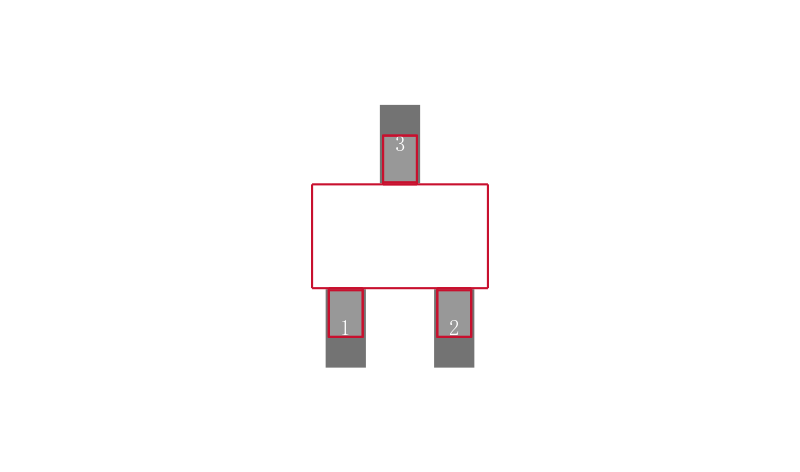

CAT809ZSDI-T3封装焊盘图
