1206 22uF ±20% 16V -B
22µF ±20% 16V Ceramic Capacitor JB 1206 3216 Metric
得捷:
CAP CER 22UF 16V JB 1206
艾睿:

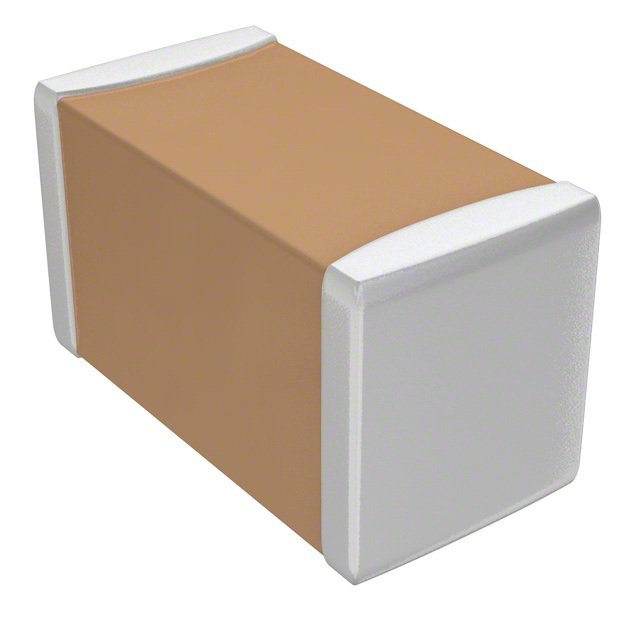

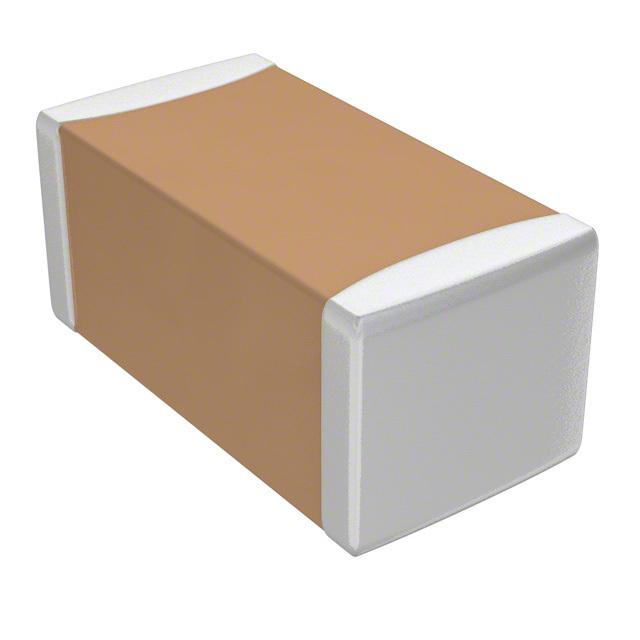

This C3216JB1C226M160AB multilayer ceramic capacitor from TDK is non-polarized so it may be connected either to positive or to negative voltage. It can withstand a voltage of 16 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has a tolerance of 20%. This product is 3.2 mm long, 1.6 mm tall and 1.6 mm deep. Its capacitance value is 22uF.
额定电压DC 16.0 V
电容 22 µF
容差 ±20 %
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压 16 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.20 mm
宽度 1.60 mm
高度 1.6 mm
封装公制 3216
封装 1206
厚度 1.6 mm
材质 -B/-25℃~+85℃
介质材料 Ceramic Multilayer
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
制造应用 通用, Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
C3216JB1C226M160AB TDK 东电化 | 当前型号 | 当前型号 |
C3216JB1V226M160AC 东电化 | 功能相似 | C3216JB1C226M160AB和C3216JB1V226M160AC的区别 |
C3216JB1E226M160AB 东电化 | 功能相似 | C3216JB1C226M160AB和C3216JB1E226M160AB的区别 |
C3216JB1A226M160AC 东电化 | 功能相似 | C3216JB1C226M160AB和C3216JB1A226M160AC的区别 |
