CAT6218-330TDGT3

LDO（低压降）线性稳压器，On Semiconductor，250mA 至 300mA### LDO（低压降）线性稳压器，ON Semiconductor低压降或 LDO 为线性稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

低压降 LDO 线性电压调节器，250mA 至 300mA，

得捷:

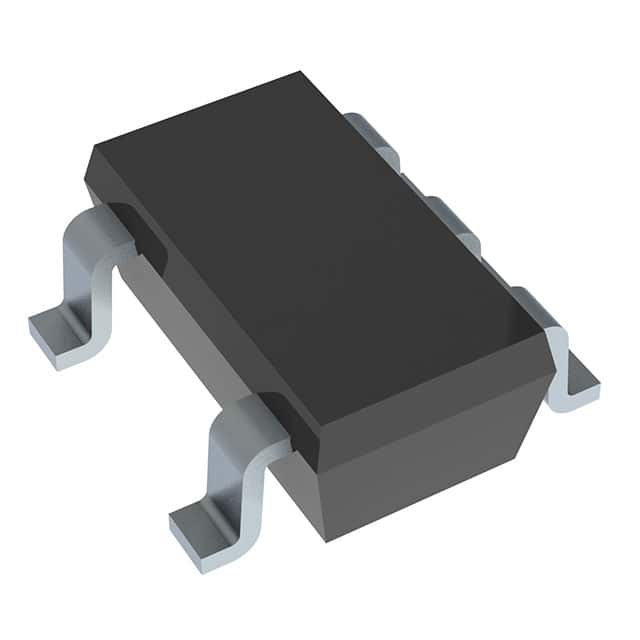

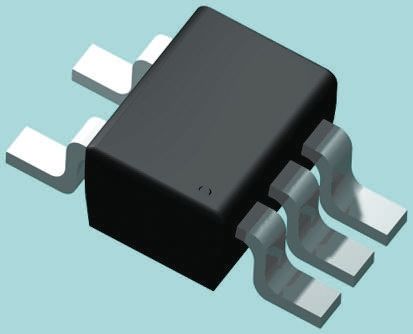

IC REG LIN 3.3V 300MA TSOT23-5

欧时:
### LDO（低压降）线性稳压器，On Semiconductor，250mA 至 300mA### LDO（低压降）线性稳压器，ON Semiconductor低压降或 LDO 为线性稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

艾睿:
This LDO CAT6218-330TDGT3 linear regulator from ON Semiconductor gives you control over the voltage levels of your circuit. Its typical dropout voltage at current is 0.18@300mA V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.3 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.3 V and no higher than 5.5 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. By operating at a load regulation of 1.2% and line regulation of 0.2%/V you can provide a constant voltage at your output. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. The maximum dropout voltage is 0.25@300mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.

Allied Electronics:
CAT6218-330TDGT3, LDO 300MA

力源芯城:
低压差稳压器

Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 300mA TSOT-23-5
