CDH53NP-2R2MC

2.2uH ±20% 2.03A

2.2µH Unshielded Inductor 2.03A 66mOhm Max Nonstandard

得捷:
FIXED IND 2.2UH 2.03A 66MOHM SMD

立创商城:
2.2uH ±20% 2.03A 51mΩ

艾睿:

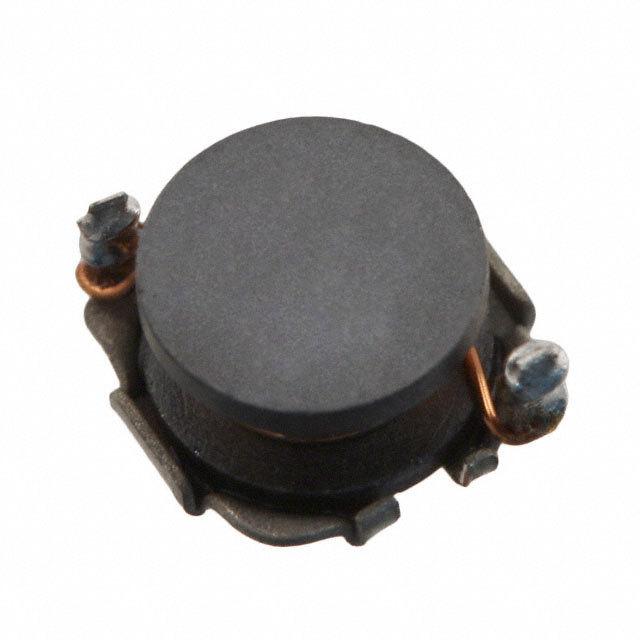

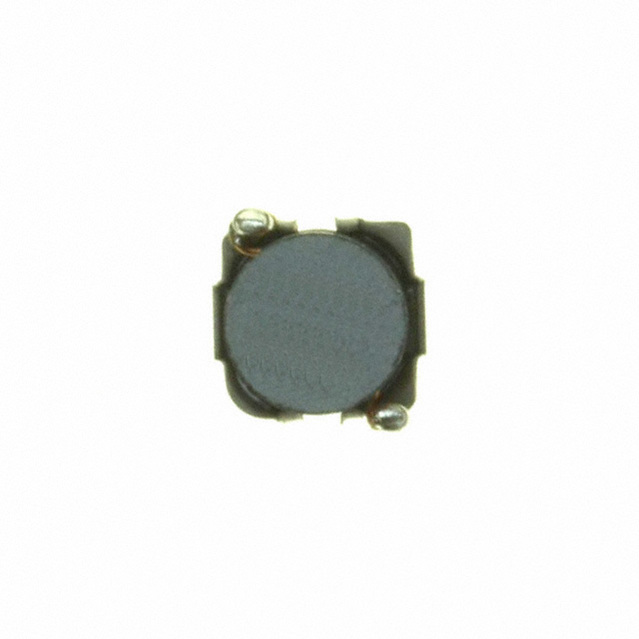

Save valuable space on a PCB with this power CDH53NP-2R2MC surface mount inductor from Sumida Corporation. This SMD inductor has an operating temperature range of -40 °C to 100 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has an inductance of 2.2u H. This product is 6 mm long, 3.2 mm tall and 5.4 mm deep. Its test frequency is 7.96M Hz. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 2.03 A with a maximum resistance of 66m Ohm. This device utilizes drum core technology.

安富利:
Ind Power Unshielded Wirewound 2.2uH 20% 7.96MHz Ferrite 2.03A Carrier T/R
