3引脚微处理器电源监控 3-Pin Microprocessor Power Supply Supervisors
Supervisor Open Drain or Open Collector 1 Channel SOT-23-3
得捷:
IC SUPERVISOR MPU OD 2.93V SOT23
贸泽:
监控电路 Supervisor,Open drain,Act low
艾睿:
Thanks to ON Semiconductor, your circuit can return to normal functionality in case of processor failure with the CAT803STBI-T3 microprocessor supervisory circuit. This device has a maximum power dissipation of 320 mW. Its maximum power dissipation is 320 mW. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a typical reset threshold voltage of 2.93 V, with a minimum of 2.89 V and a maximum of 2.96 V. This part has an operating temperature range of -40 °C to 85 °C. This device has a minimum operating supply voltage of 1.2 V and a maximum of 5.5 V.
供电电流 15.0 µA
耗散功率 320 mW
阈值电压 2.93 V
复位电压Min 2.89 V
复位电压Max 2.96 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 320 mW
电源电压Max 5.5 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 3

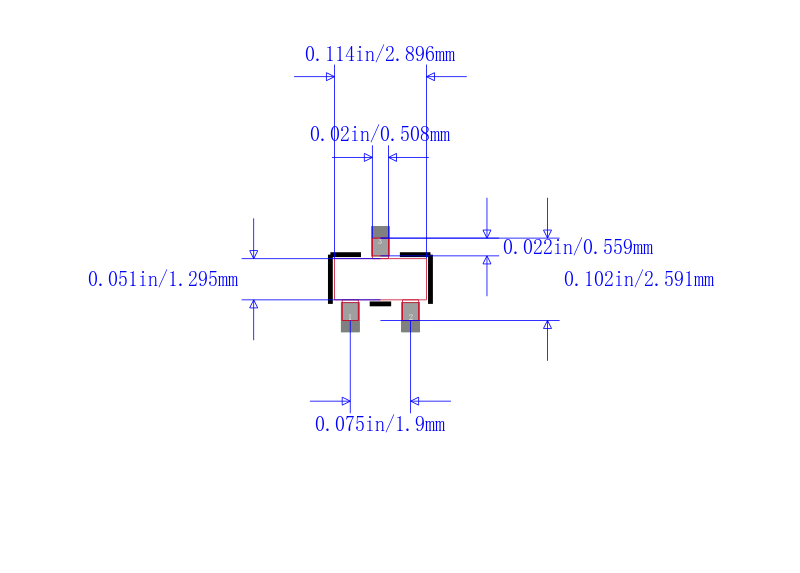

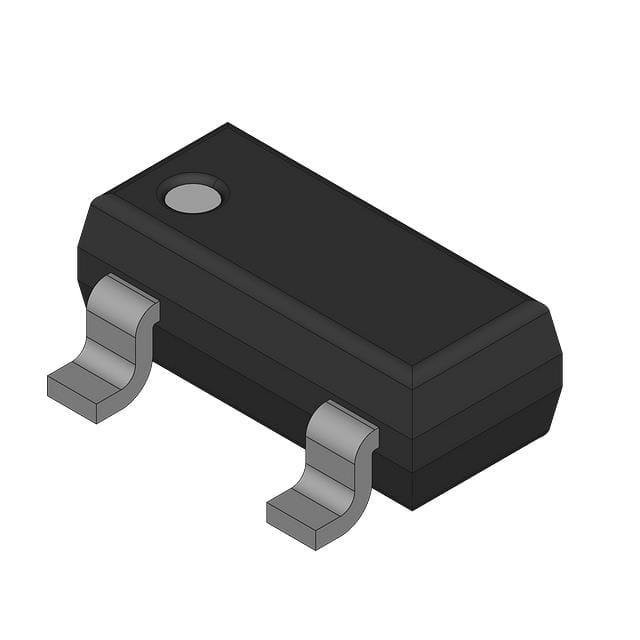

封装 SOT-23-3
长度 3.04 mm
宽度 1.4 mm
高度 1.12 mm
封装 SOT-23-3
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CAT803STBI-T3 ON Semiconductor 安森美 | 当前型号 | 当前型号 |
NCP803SN293T1G 安森美 | 类似代替 | CAT803STBI-T3和NCP803SN293T1G的区别 |
NCP803SN308T1G 安森美 | 类似代替 | CAT803STBI-T3和NCP803SN308T1G的区别 |
NCP803SN293D3T1G 安森美 | 类似代替 | CAT803STBI-T3和NCP803SN293D3T1G的区别 |
