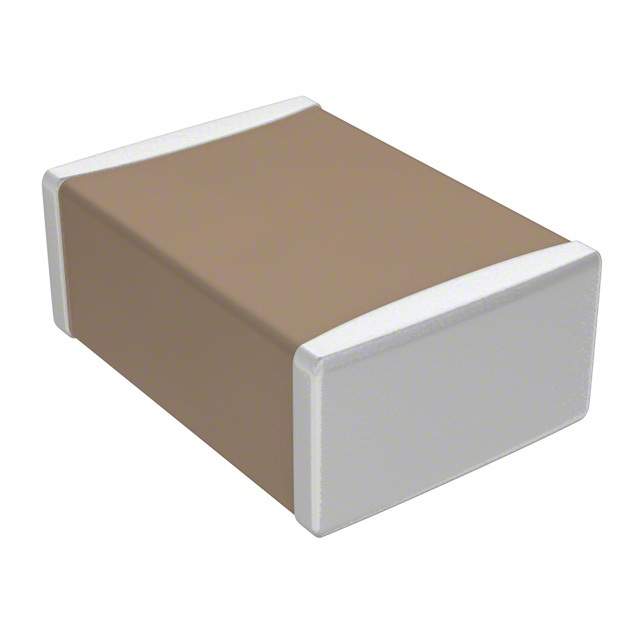

1812 150nF ±20% 630V X7T
0.15 µF ±20% 630V 陶瓷器 X7T 1812(4532 公制)
得捷:
CAP CER 0.15UF 630V X7T 1812
立创商城:
150nF ±20% 630V
艾睿:
Available with a variety of capacitance values, voltage ratings, package sizes, and other parameters, this C4532X7T2J154M160KC multilayer ceramic capacitor from TDK can be used in multiple applications and for various purposes. It can withstand a voltage of 630 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 4.5 mm long, 1.6 mm tall and 3.2 mm deep. It has a tolerance of 20%. Its capacitance value is 0.15uF.
Verical:
Cap Ceramic 0.15uF 630V X7T 20% Pad SMD 1812 125C T/R
额定电压DC 630 V
电容 150000 PF
容差 ±20 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 630 V
安装方式 Surface Mount
封装公制 4832
封装 1812
长度 4.5 mm
宽度 3.2 mm
高度 1.6 mm
封装公制 4832
封装 1812
材质 X7T/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Production Not Recommended for New Design
包装方式 Tape & Reel TR
最小包装 1000
制造应用 Commercial Grade, Please refer to Part No., for Automotive use., 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C4532X7T2J154M160KC TDK 东电化 | 当前型号 | 当前型号 |
C4532X7T2J154K160KC 东电化 | 类似代替 | C4532X7T2J154M160KC和C4532X7T2J154K160KC的区别 |
