CGA9N3X7R2E474K230KA

CGA9N3X7R2E474K230KA图片1
CGA9N3X7R2E474K230KA图片2
CGA9N3X7R2E474K230KA图片3
CGA9N3X7R2E474K230KA图片4
CGA9N3X7R2E474K230KA图片5
CGA9N3X7R2E474K230KA图片6
CGA9N3X7R2E474K230KA概述

2220 470nF ±10% 250V X7R

0.47 µF ±10% 250V 陶瓷器 X7R 2220(5750 公制)


得捷:
CAP CER 0.47UF 250V X7R 2220


立创商城:
470nF ±10% 250V


艾睿:
This CGA9N3X7R2E474K230KA multilayer ceramic capacitor from TDK is available with a variety of capacitance values, voltage ratings, package sizes, and other parameters. It can withstand a voltage of 250 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 5.7 mm long, 2.3 mm tall and 5 mm deep. It has a tolerance of 10%. Its capacitance value is 0.47uF.


安富利:
CAP 0.47UF 250V X7R 10% SMD 2220


Verical:
Cap Ceramic 0.47uF 250V X7R 10% Pad SMD 2220 125C Automotive T/R


CGA9N3X7R2E474K230KA中文资料参数规格
技术参数

额定电压DC 250 V

电容 470000 PF

容差 ±10 %

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 250 V

封装参数

安装方式 Surface Mount

封装 2220

外形尺寸

高度 2.3 mm

封装 2220

物理参数

材质 X7R/-55℃~+125℃

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Production Not Recommended for New Design

包装方式 Tape & Reel TR

最小包装 500

制造应用 Automotive Grade, 汽车级

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

CGA9N3X7R2E474K230KA引脚图与封装图
CGA9N3X7R2E474K230KA引脚图

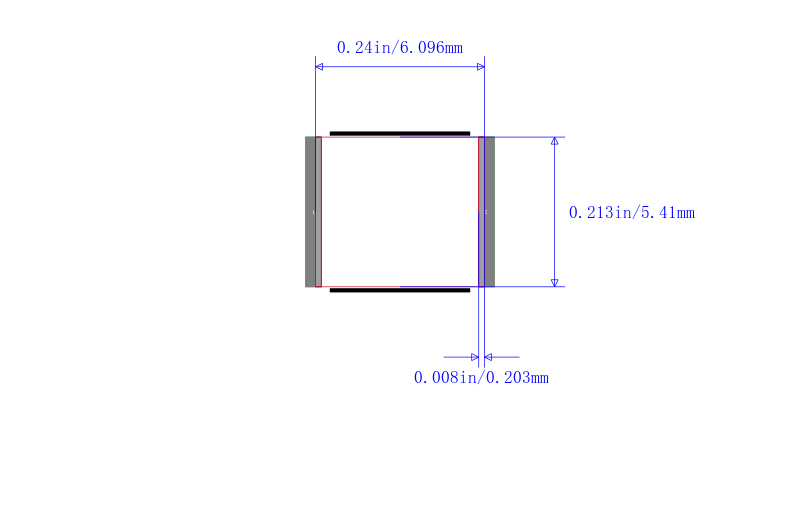

CGA9N3X7R2E474K230KA封装图

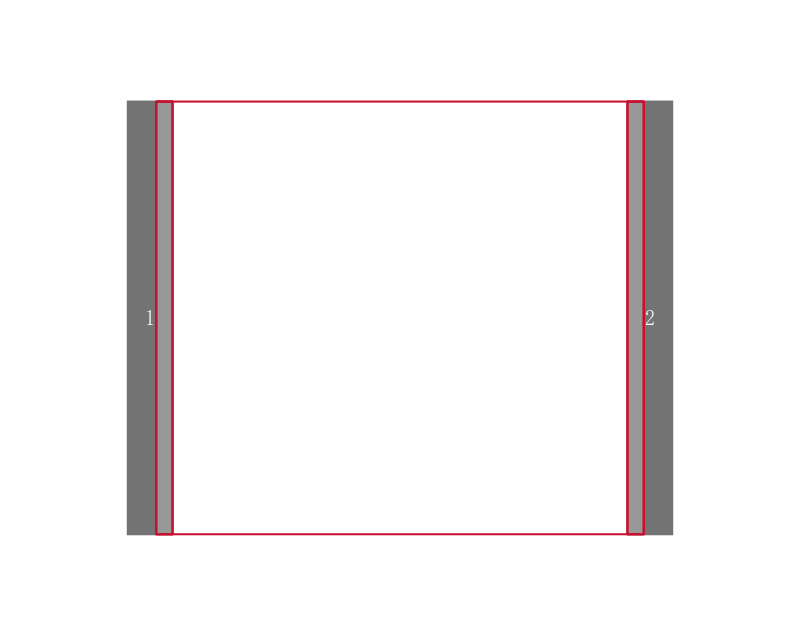

CGA9N3X7R2E474K230KA封装焊盘图
在线购买CGA9N3X7R2E474K230KA
型号: CGA9N3X7R2E474K230KA
制造商: TDK 东电化
描述:2220 470nF ±10% 250V X7R
替代型号CGA9N3X7R2E474K230KA
型号/品牌 代替类型 替代型号对比

CGA9N3X7R2E474K230KA

TDK 东电化

当前型号

当前型号

C5750X7R2E474K230KA

东电化

类似代替

CGA9N3X7R2E474K230KA和C5750X7R2E474K230KA的区别

C5750X7R2E474K230KM

东电化

类似代替

CGA9N3X7R2E474K230KA和C5750X7R2E474K230KM的区别

C5750X7R2E474KT5

东电化

功能相似

CGA9N3X7R2E474K230KA和C5750X7R2E474KT5的区别
