ON SEMICONDUCTOR CAT3200TDI-GT3 芯片, 直流/直流转换器, 电荷泵, TSOT23-6
Are you working with direct current? Try implementing this charge pump voltage doubler from in order to have various voltages. With an output that has a voltage of 5 V, this is power management at its best. Its output produces a current of 100Max mA. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This inverting charge pump has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device has a minimum operating supply voltage of 2.7 V and a maximum of 4.5 V.
无卤素状态 Halogen Free
输出接口数 1
输出电压 5 V
输出电流 100 mA
针脚数 6
耗散功率 0.3 W
开关频率 2 MHz
输入电压Max 4.5 V
输入电压Min 2.7 V
输出电压Max 6 V
输出电压Min 2.7 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 300 mW
输入电压 2.7V ~ 4.5V
安装方式 Surface Mount
引脚数 6

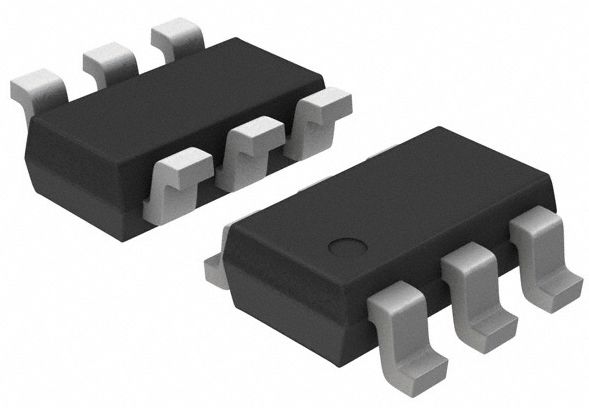

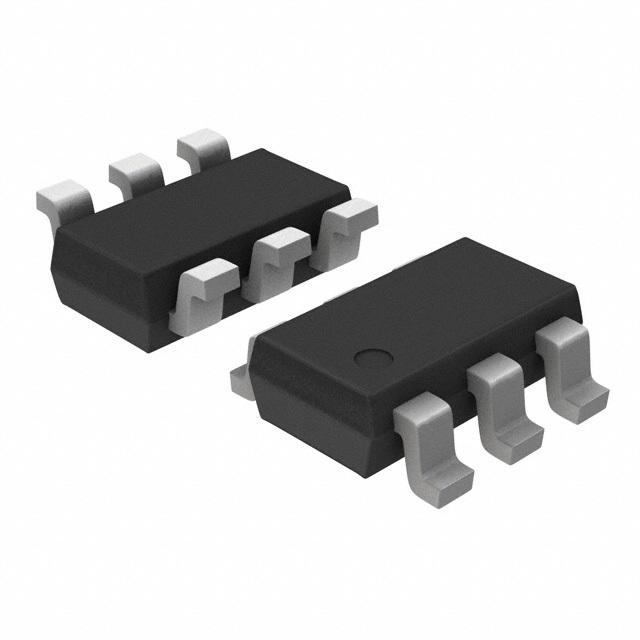

封装 TSOT-23-6
封装 TSOT-23-6
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 3.0 V to 5.0 V boost conversion, White LED driver, 便携式器材, Local 5.0 V supply from lower rail, 电源管理, Handheld portable devices, USB On-The-Go 5.0 V supply, Battery backup systems
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CAT3200TDI-GT3 ON Semiconductor 安森美 | 当前型号 | 当前型号 |
CAT3200TDI-TE7 安森美 | 类似代替 | CAT3200TDI-GT3和CAT3200TDI-TE7的区别 |
CAT3200TDI-T3 安森美 | 类似代替 | CAT3200TDI-GT3和CAT3200TDI-T3的区别 |
LTC3200ES6-5#TRMPBF 凌力尔特 | 功能相似 | CAT3200TDI-GT3和LTC3200ES6-5#TRMPBF的区别 |
