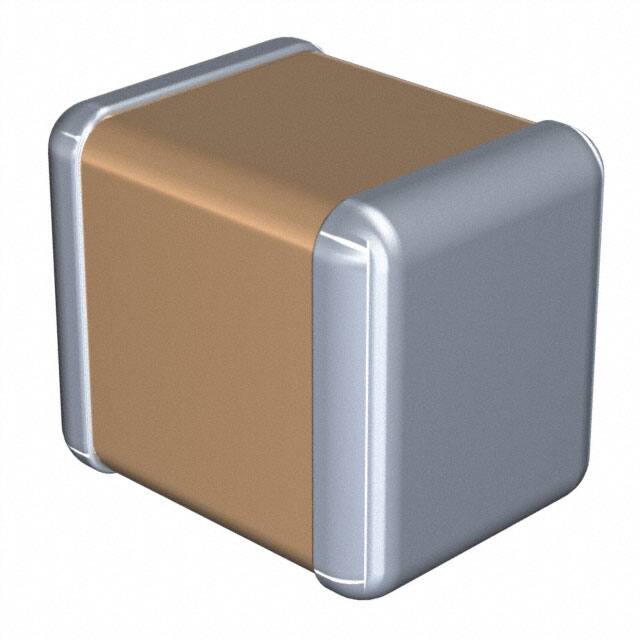

1210 68nF ±5% 100V C0G
0.068µF ±5% 100V Ceramic Capacitor C0G, NP0 1210 3225 Metric
得捷:
CAP CER 0.068UF 100V C0G 1210
立创商城:
68nF ±5% 100V
贸泽:
Multilayer Ceramic Capacitors MLCC - SMD/SMT 1210 C0G 100volts 0.068uF 5% 2.3mm
艾睿:
This C3225C0G2A683J230AA multilayer ceramic capacitor from TDK has so many uses that it even has a standard classification system for all its uses! It can withstand a voltage of 100 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 3.2 mm long, 2.3 mm tall and 2.5 mm deep. Its capacitance value is 0.068uF. It has a tolerance of 5%.
安富利:
Cap Ceramic 0.068uF 100V C0G 5% SMD 1210 125°C Blister Plastic T/R
Verical:
Cap Ceramic 0.068uF 100V C0G 5% Pad SMD 1210 125C T/R
额定电压DC 100 V
电容 0.068 µF
容差 ±5 %
工作温度Max 125 ℃
工作温度Min 55 ℃
额定电压 100 V
安装方式 Surface Mount
封装公制 3225
封装 1210

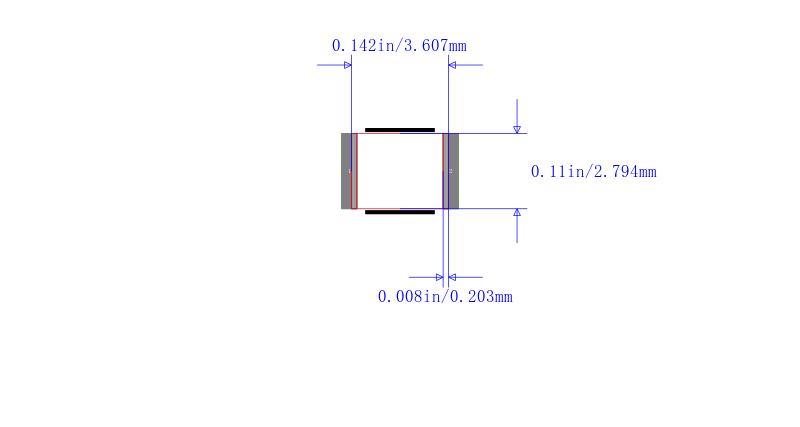

长度 3.2 mm
宽度 2.5 mm
高度 2.3 mm
封装公制 3225
封装 1210
厚度 2.3 mm
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
制造应用 for Automotive use., Commercial Grade, Please refer to Part No., 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C3225C0G2A683J230AA TDK 东电化 | 当前型号 | 当前型号 |
C3225NP02A683J230AA 东电化 | 类似代替 | C3225C0G2A683J230AA和C3225NP02A683J230AA的区别 |
C3225C0G2A683K230AA 东电化 | 类似代替 | C3225C0G2A683J230AA和C3225C0G2A683K230AA的区别 |
