LDO(低压降)线性电压调节器,ON Semiconductor,最高可达 120mA### LDO(低压降)线性电压调节器,ON Semiconductor低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
低压降 LDO 线性电压调节器,高达 120mA,
得捷:
IC REG LINEAR 5V 100MA 8SOIC
欧时:
ON Semiconductor CS8101YDR8G LDO 稳压器, 4.85 → 5.15 V输出, 100mA最大输出, ±2%精确度
艾睿:
Stable voltages are always needed for sensitive systems implement this LDO CS8101YDR8G linear regulator from ON Semiconductor. Its typical dropout voltage at current is 0.1@100uA|0.4@100mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.1 A. This will operate at a maximum voltage of 30 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 5 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 50mV and line regulation of 50mV. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive. The maximum dropout voltage is 0.15@100uA|0.6@100mA V.
Allied Electronics:
CS8101YDR8G, ANA LDO MICROPOWER REG
Chip1Stop:
LDO Regulator Pos 5V 0.1A Automotive 8-Pin SOIC N T/R
力源芯城:
100mA,输出电流,带复位及使能端
DeviceMart:
IC REG LDO 5V .1A 8SOIC
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 5V 100mA 8-SOIC
无卤素状态 Halogen Free
输出接口数 1
输入电压DC 17.0V max
输出电压 5 V
输出电流 100 mA
极性 P-Channel
跌落电压 0.4V @100mA
输入电压Max 26 V
输入电压Min 6 V
输出电流Max 100 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 6V ~ 26V
安装方式 Surface Mount

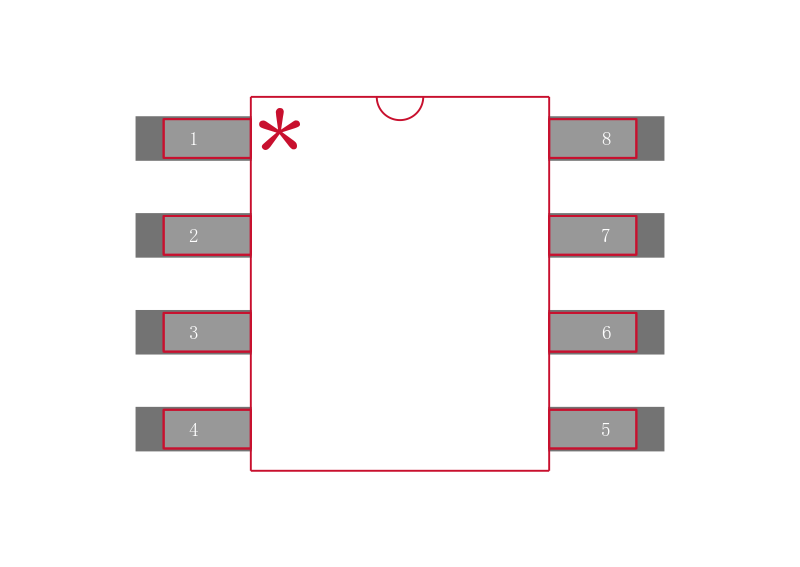

引脚数 8

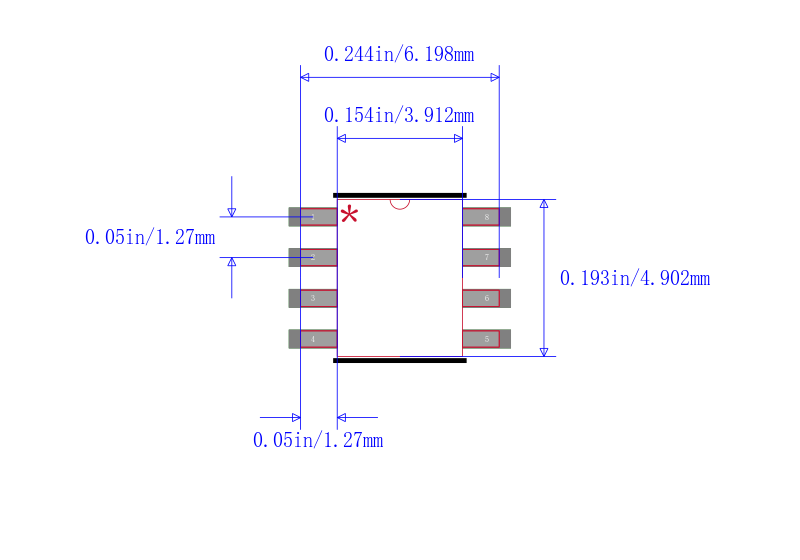

封装 SOIC-8
长度 5 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CS8101YDR8G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
CS8101YD8 安森美 | 完全替代 | CS8101YDR8G和CS8101YD8的区别 |
CS8101YT5 安森美 | 完全替代 | CS8101YDR8G和CS8101YT5的区别 |
CS8101YT5G 安森美 | 完全替代 | CS8101YDR8G和CS8101YT5G的区别 |
