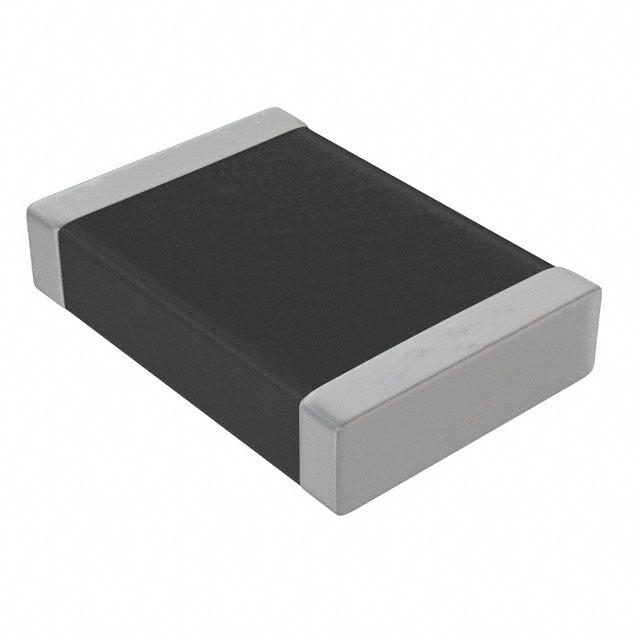

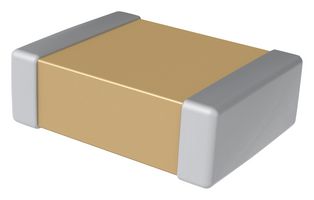

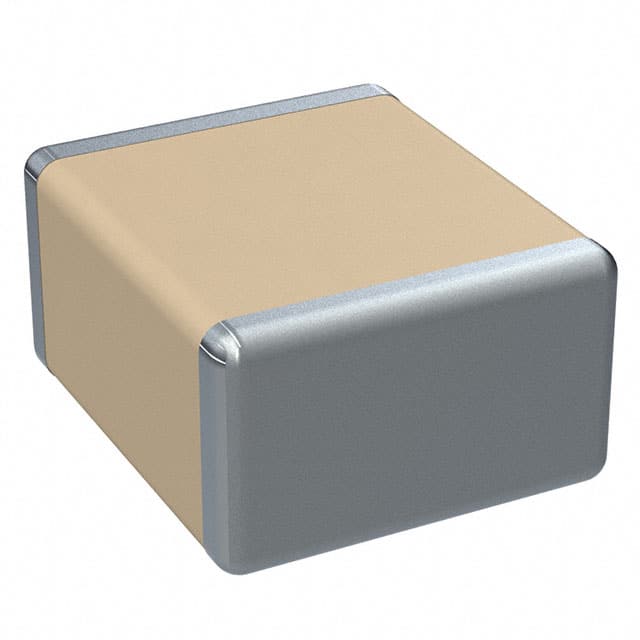

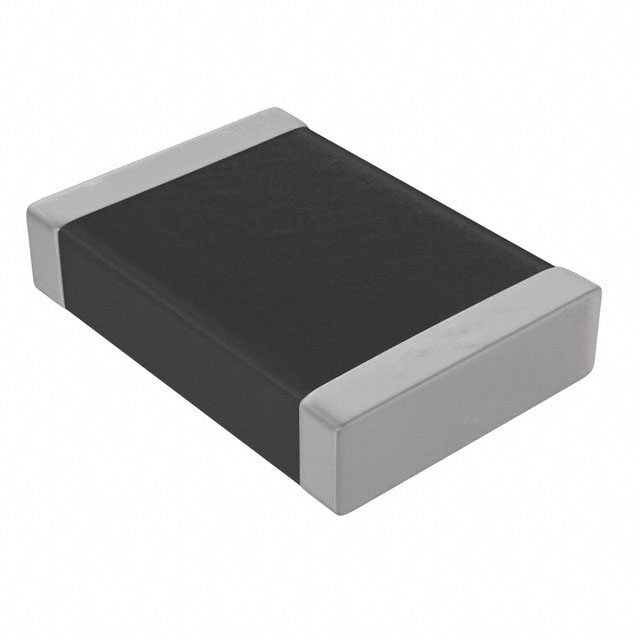

C1812C473J5GACTU图片1
C1812C473J5GACTU图片2
C1812C473J5GACTU图片3
C1812C473J5GACTU图片4
C1812C473J5GACTU图片5
C1812C473J5GACTU图片6
C1812C473J5GACTU图片7
C1812C473J5GACTU图片8
C1812C473J5GACTU图片9
C1812C473J5GACTU概述

KEMET  C1812C473J5GACTU  多层陶瓷电容器, 表面贴装, C系列, 0.047 µF, ± 5%, C0G / NP0, 50 V, 1812 [4532 公制]

The Kemet C series commercial grade multilayer ceramic chip capacitors is Class 1, C0G dielectric material which exhibits no change in capacitance with respect to time and voltage. There will be negligible change in capacitance with reference to ambient temperature. Standard end terminations use a nickel barrier layer and a matte tin finish to provide excellent soldering ability for customers. Typical applications include timing, tuning, circuits requiring low loss, circuits with pulse, high current, decoupling, bypass, filtering, transient voltage suppression and energy storage. MLCCs are monolithic devices that consist of laminated layers of specially formulated, ceramic dielectric materials interspersed with a metal electrode system. The layered formation is then fired at high temperature to produce a sintered and volumetrically efficient capacitance device. A conductive termination barrier system is integrated on the exposed ends of the chip to complete the connection.

.
Capacitance range includes E24 decade values from 0.5pF to 0.47µF
.
EIA 0201, 0402, 0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220, 2225 case sizes available
.
DC voltage rating of 10V to 250V
.
Operating temperature range of -55°C to 125°C
.
High thermal stability
.
High ripple current capability
.
Extremely low ESR and ESL
.
No piezoelectric noise
C1812C473J5GACTU中文资料参数规格
技术参数

额定电压DC 50.0 V

绝缘电阻 21.277 GΩ

电容 47000 pF

容差 ±5 %

电介质特性 C0G/NP0

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 50 V

封装参数

安装方式 Surface Mount

引脚数 2

封装公制 4832

封装 1812

外形尺寸

长度 4.5 mm

宽度 3.2 mm

高度 1 mm

封装公制 4832

封装 1812

物理参数

介质材料 Ceramic

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Cut Tape CT

制造应用 Consumer Electronics, Power Management, 便携式器材, 消费电子产品, 电源管理, 工业, Industrial, Portable Devices, 通用

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

C1812C473J5GACTU引脚图与封装图
C1812C473J5GACTU引脚图

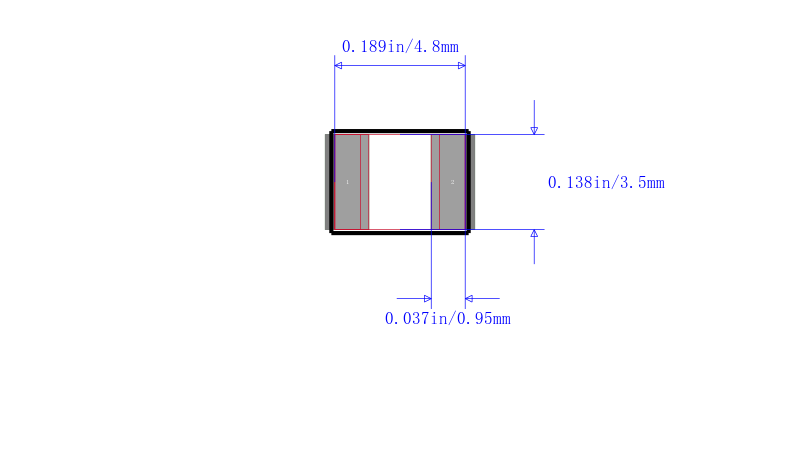

C1812C473J5GACTU封装图
C1812C473J5GACTU封装焊盘图
在线购买C1812C473J5GACTU
型号: C1812C473J5GACTU
描述:KEMET  C1812C473J5GACTU  多层陶瓷电容器, 表面贴装, C系列, 0.047 µF, ± 5%, C0G / NP0, 50 V, 1812 [4532 公制]
替代型号C1812C473J5GACTU
型号/品牌 代替类型 替代型号对比

C1812C473J5GACTU

KEMET Corporation 基美

当前型号

当前型号

C1812C473J1GACTU

基美

类似代替

C1812C473J5GACTU和C1812C473J1GACTU的区别

C1812C473G5GACTU

基美

类似代替

C1812C473J5GACTU和C1812C473G5GACTU的区别
