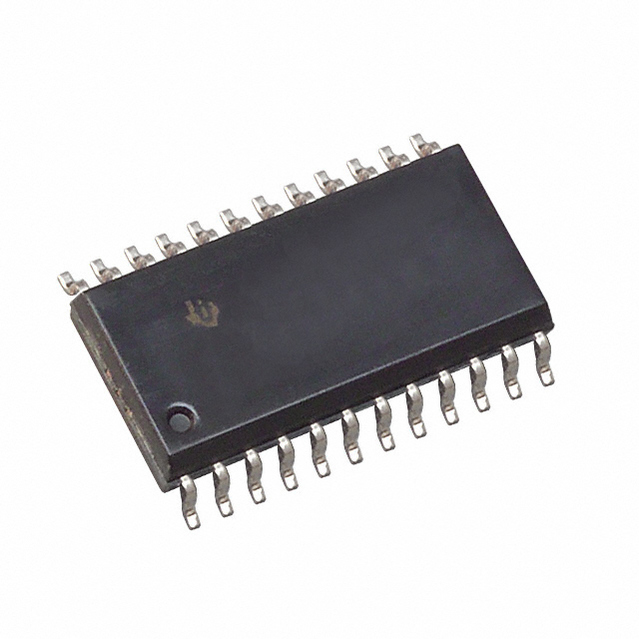

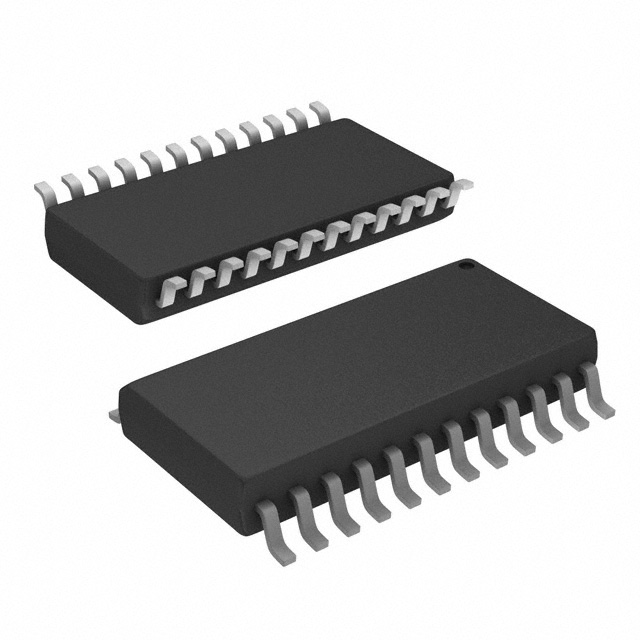

TEXAS INSTRUMENTS CD74HCT154M96 芯片, 解码器/信号分离器, 4:16, SOIC-24
The is a 4-to-16 high speed CMOS Decoder/Demultiplexer with two enable inputs, E1 and E2. A High on either enable input forces the output into the High state. The demultiplexing function is performed by using the four input lines, A0 to A3, to select the output lines Y0\ to Y15\ and using one enable as the data input while holding the other enable low.
电源电压DC 4.50V min
输出接口数 16
针脚数 24
位数 16
带宽 28.0 MHz
输入数 4
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 24
封装 SOIC-24
封装 SOIC-24
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 通信与网络
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CD74HCT154M96 TI 德州仪器 | 当前型号 | 当前型号 |
CD74HCT154M 德州仪器 | 完全替代 | CD74HCT154M96和CD74HCT154M的区别 |
CD74HCT154E 德州仪器 | 完全替代 | CD74HCT154M96和CD74HCT154E的区别 |
CD74HCT154EN 德州仪器 | 完全替代 | CD74HCT154M96和CD74HCT154EN的区别 |
