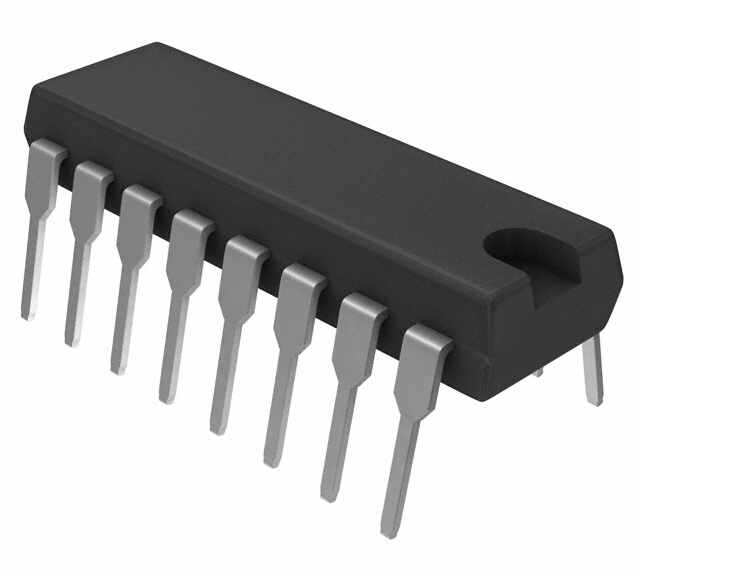

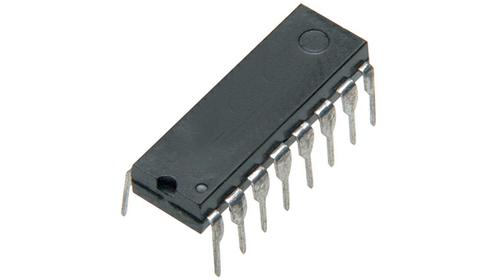

CD4028BE

TEXAS INSTRUMENTS  CD4028BE  芯片, 译码器/驱动器

The is a MOS BCD-to-Decimal or Binary-to-Octal Decoder/Driver consisting of buffering on all 4 inputs, decoding-logic gates and 10 output buffers. A BCD code applied to the four input, A to D, results in a high level at the selected one of 10 decimal decoded outputs. Similarly, a 3-bit binary code applied to inputs A through C is decoded in octal code at output 0 to 7 if D=0. High drive capability is provided at all outputs to enhance DC and dynamic performance in high fan-out applications. It is suitable for code conversion, indicator-tube decoder and address decoding-memory selection control.

.

BCD-to-decimal decoding or binary-to-octal decoding

.

High decoded output drive capability

.

Medium-speed operation

.

Standardized, symmetrical output characteristics

.

100% Tested for quiescent current at 20V

.

Maximum input current of 1µA at 18V

.

±10mA DC input current
