AC-DC Power Supply Single-OUT 28V 18A 504W Medical 10Pin
Enclosed, Conformal Coated AC DC Converters 1 Output 28V 18A 90 ~ 265 VAC Input
得捷:
AC/DC CONVERTER 28V 500W
艾睿:

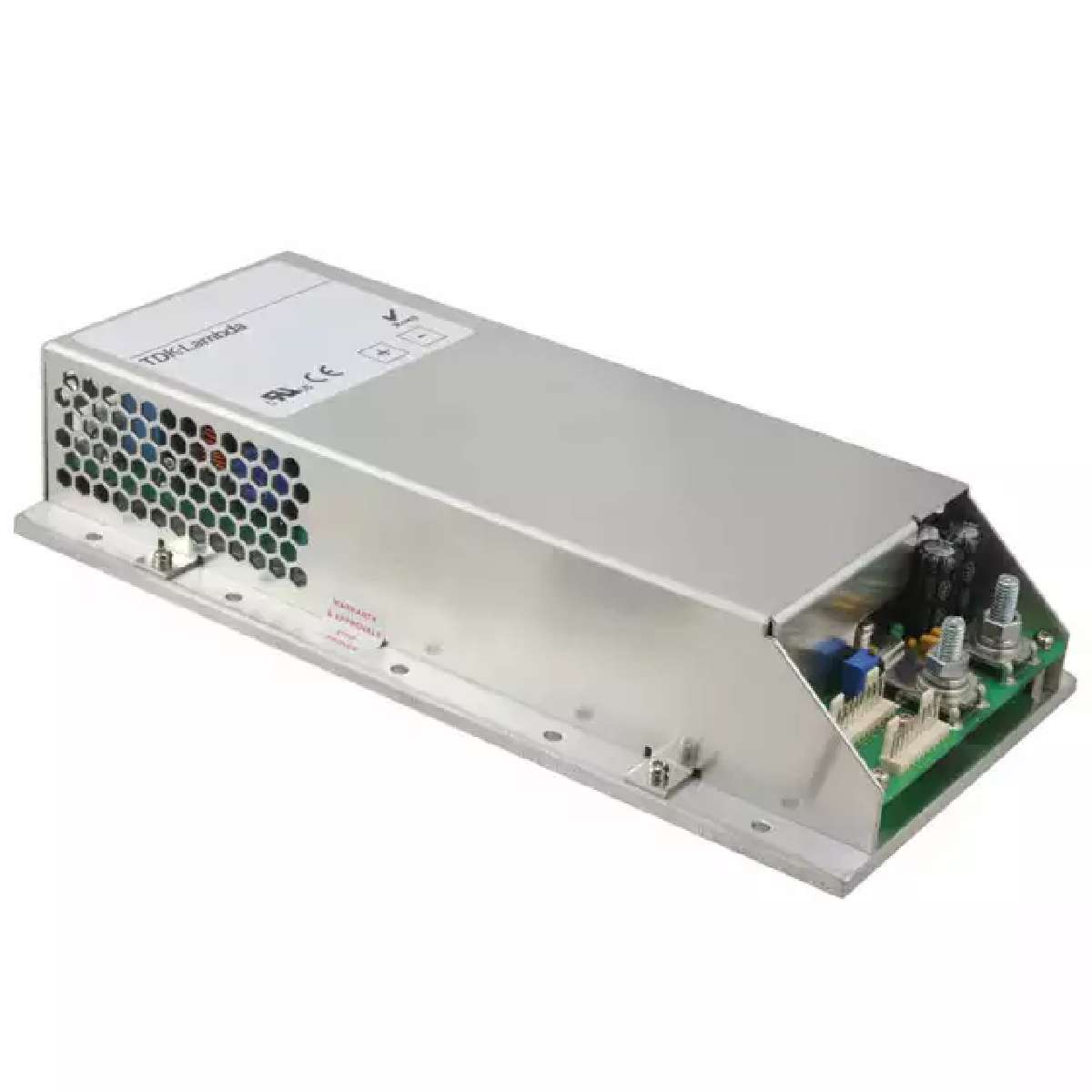

Ensure your electronic devices operate by using this CPFE500F-28-DLC AC to DC power supply from TDK-Lambda. It has a voltage of 28 V and maximum output power of 504 W. This part&s;s single output can handle a current up to 18 A. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C.
AMEYA360:
AC/DC CONVERTER 28V 500W
额定功率 500 W
输出接口数 1
输出电压 28 V
输出电流 18 A
输出功率 504 W
隔离电压 4.242 kV
输入电压AC Max 265 V
输入电压AC Min 90 V
输出电流Max 18 A
额定功率Max 500 W
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 90VAC ~ 265VAC
安装方式 Chassis
引脚数 10
长度 270 mm
宽度 126 mm
高度 55 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Obsolete
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
