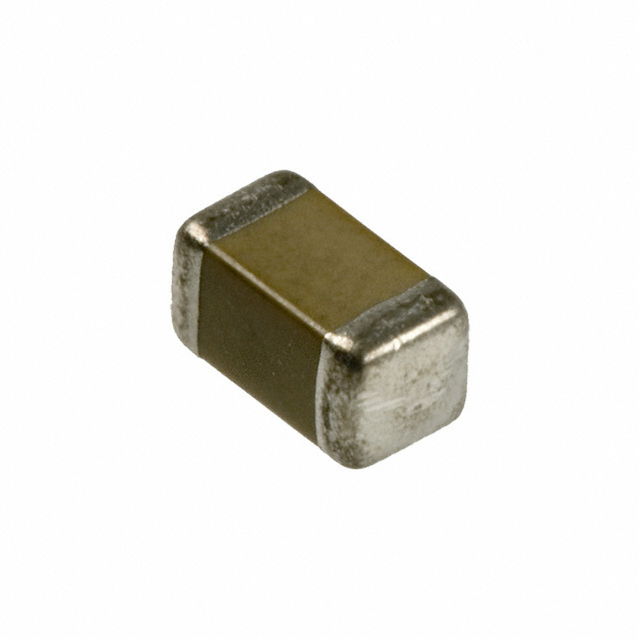

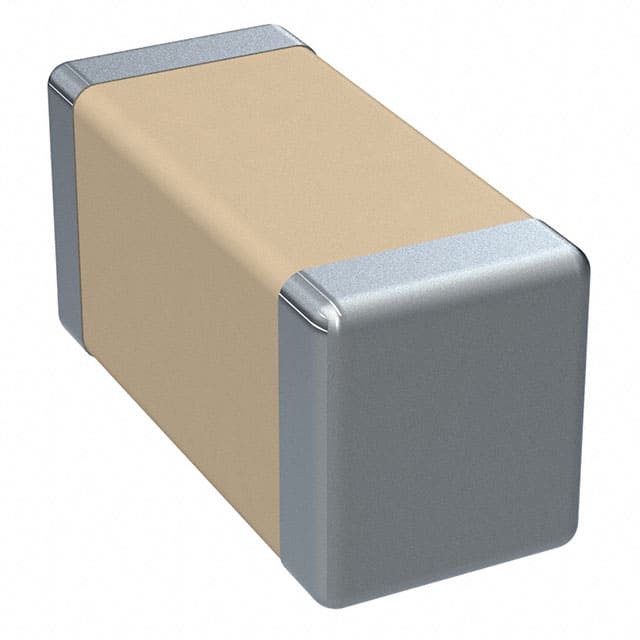

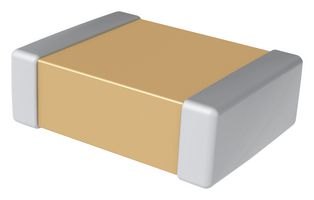

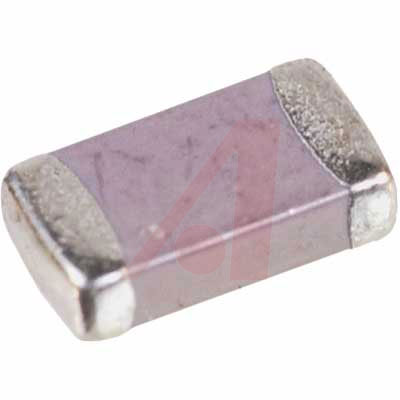

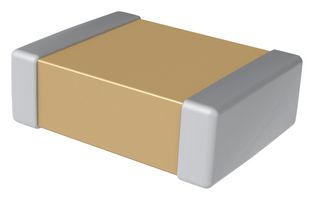

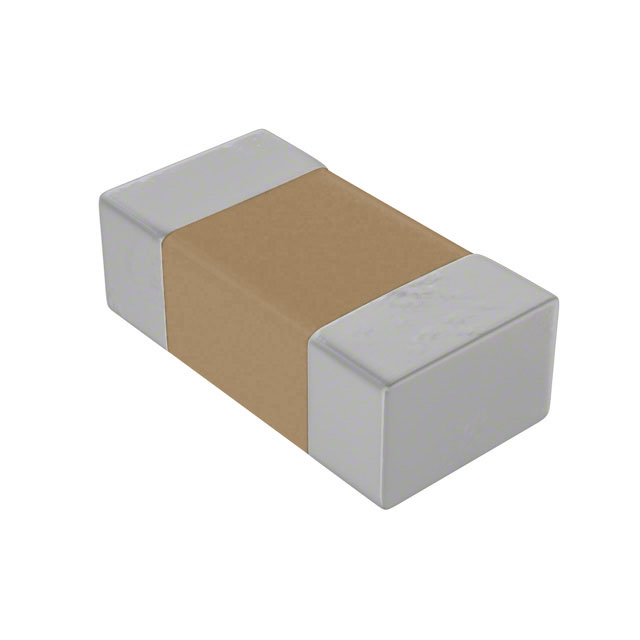

KEMET C1206C104K3HACTU 多层陶瓷电容器, 表面贴装, C系列, 0.1 µF, ± 10%, X8R, 25 V, 1206 [3216 公制]
±10% 25V 陶瓷器 X8R 1206(3216 公制)
立创商城:
100nF ±10% 25V
得捷:
CAP CER 0.1UF 25V X8R 1206
e络盟:
多层陶瓷电容器, 表面贴装, 0.1 µF, 25 V, 1206 [3216 公制], ± 10%, X8R, C系列KEMET
艾睿:
Do you need a non-polarized capacitor? This C1206C104K3HACTU multilayer ceramic capacitor from Kemet can be connected either to positive or to negative voltage as you please! It can withstand a voltage of 25 VDC. This MLCC capacitor has a maximum operating temperature of 150 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a tolerance of 10%. Its capacitance value is 0.1uF. This product is 3.2 mm long, 1.6 mm tall and 1.6 mm deep.
Allied Electronics:
Capacitor; Ceramic; 0.1uF; Tol 10%; SMT High Temp; Vol-Rtg 25V; Ultra Stable; X8R
安富利:
Cap Ceramic 0.1uF 25V X8R 10% SMD 1206 150°C Plastic T/R
Verical:
Cap Ceramic 0.1uF 25V X8R 10% Pad SMD 1206 150C Extreme Low ESR T/R
Newark:
# KEMET C1206C104K3HACTU SMD Multilayer Ceramic Capacitor, 1206 [3216 Metric], 0.1 µF, 25 V, ± 10%, X8R, C Series
额定电压DC 25.0 V
绝缘电阻 10 GΩ
电容 0.1 µF
容差 ±10 %
电介质特性 X8R
工作温度Max 150 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.2 mm
宽度 3.2 mm
高度 1.6 mm
封装公制 3216
封装 1206
介质材料 Ceramic
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Portable Devices, Industrial, 工业, 便携式器材, Consumer Electronics, 通用, 消费电子产品, Power Management, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C1206C104K3HACTU KEMET Corporation 基美 | 当前型号 | 当前型号 |
C1206C104J3HACTU 基美 | 类似代替 | C1206C104K3HACTU和C1206C104J3HACTU的区别 |
C1206C104K3RAC7800 基美 | 类似代替 | C1206C104K3HACTU和C1206C104K3RAC7800的区别 |
C1206C104K4RACTU 基美 | 功能相似 | C1206C104K3HACTU和C1206C104K4RACTU的区别 |
