双2线, 4线译码器/解复用器 DUAL 2-LINE TO 4-LINE DECODER/DEMULTIPLEXER
解码器/多路分解器 1 x 2:4 16-TSSOP
得捷:
IC DUAL 2-4LN DECOD/DEMUX16TSSOP
立创商城:
CLVC139AQPWRG4Q1
德州仪器TI:
Automotive Catalog Dual 2-Line To 4-Line Decoder/Demultiplexer
贸泽:
编码器、解码器、复用器和解复用器 Auto Cat Dual 2 To 4 Line Decod/Demux
艾睿:
Decoder/Demultiplexer Dual 2-to-4 Automotive 16-Pin TSSOP T/R
安富利:
Decoder/Demultiplexer Dual 2-to-4 16-Pin TSSOP T/R
Chip1Stop:
Decoder/Demultiplexer Dual 2-to-4 Automotive 16-Pin TSSOP T/R
Verical:
Decoder/Demultiplexer Dual 2-to-4 Automotive 16-Pin TSSOP T/R
电源电压DC 1.65V ~ 3.60V
输出接口数 4
电路数 2
位数 4
电压波节 3.30 V, 2.70 V, 2.50 V, 1.80 V
带宽 100 MHz
输出电流驱动 -1.00 mA
输入数 2
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 16

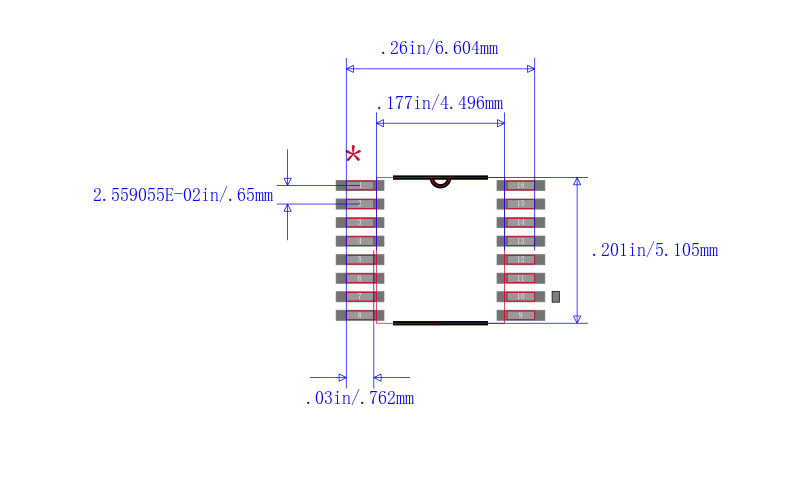

封装 TSSOP-16
长度 5 mm
宽度 4.4 mm
高度 1.15 mm
封装 TSSOP-16
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CLVC139AQPWRG4Q1 TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC138APW 德州仪器 | 类似代替 | CLVC139AQPWRG4Q1和SN74LVC138APW的区别 |
SN74HC138PWR 德州仪器 | 类似代替 | CLVC139AQPWRG4Q1和SN74HC138PWR的区别 |
SN74HC139PWR 德州仪器 | 类似代替 | CLVC139AQPWRG4Q1和SN74HC139PWR的区别 |
