高速CMOS逻辑4至16线路解码器/多路解复用器与输入锁存器 High-Speed CMOS Logic 4- to 16-Line Decoder/Demultiplexer with Input Latches
Have multiple states to choose from in a logic circuit? Then look no further, this from Texas Instruments is all you need to select between states. This decoder has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
电源电压DC 2.00V min
输出接口数 16
位数 16
带宽 28.0 MHz
输入数 4
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 24

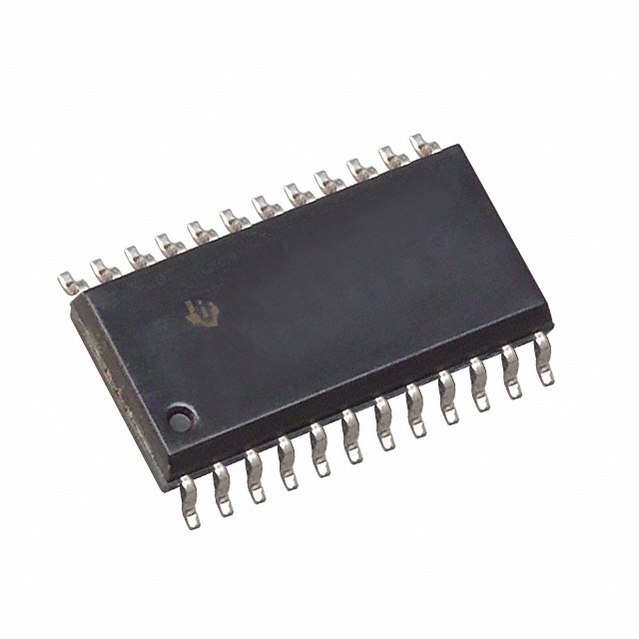

封装 SOIC-24
封装 SOIC-24
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CD74HC4514M96 TI 德州仪器 | 当前型号 | 当前型号 |
CD74HC154M 德州仪器 | 完全替代 | CD74HC4514M96和CD74HC154M的区别 |
CD74HC154M96 德州仪器 | 完全替代 | CD74HC4514M96和CD74HC154M96的区别 |
CD74HC4514MG4 德州仪器 | 完全替代 | CD74HC4514M96和CD74HC4514MG4的区别 |
