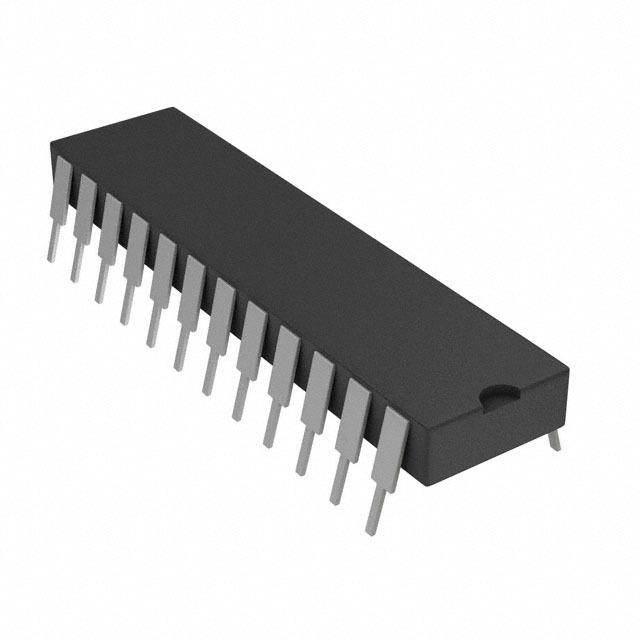

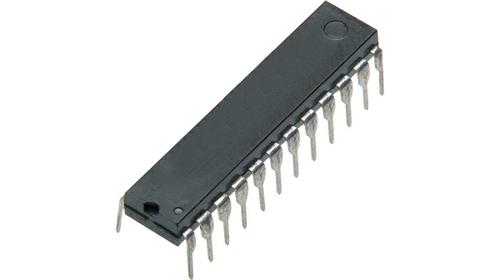

CD4514BE

TEXAS INSTRUMENTS  CD4514BE  芯片, 锁存器/线译码器, 4位

The is a CMOS 4-bit Latch/4 to 16 Line Decoder with output "high" on select. The latches hold the last input data presented prior to the strobe transition from 1 to 0. Inhibit control allows all outputs to be placed at 0 regardless of the state of the data or strobe inputs. The decode truth table indicates all combinations of data inputs and appropriate selected outputs.

.

Strobed input latch

.

Inhibit control

.

100% Tested for quiescent current at 20V

.

Standardized, symmetrical output characteristics

.

Meets all requirements of JEDEC tentative standard #13B
