TEXAS INSTRUMENTS CD74HCT154EN 逻辑芯片, 译码器/数据选择器, 4-16, 24DIP

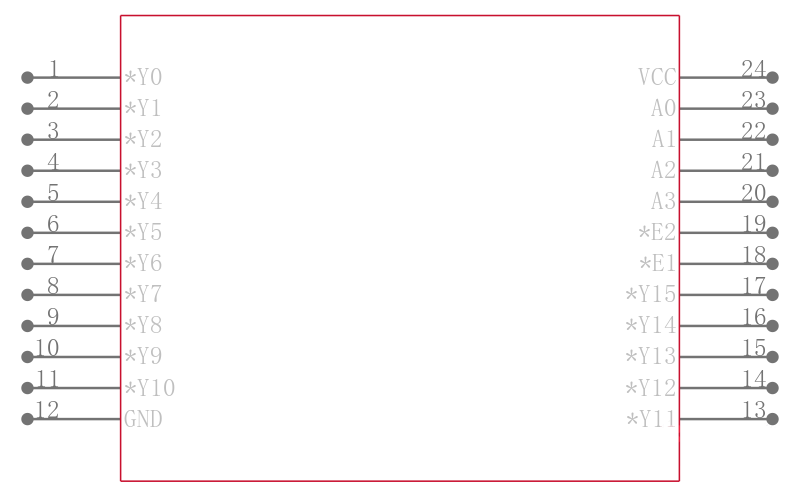

The is a 4-to-16 high speed CMOS Decoder/Demultiplexer with two enable inputs, E1 and E2. A High on either enable input forces the output into the High state. The demultiplexing function is performed by using the four input lines, A0 to A3, to select the output lines Y0\ to Y15\ and using one enable as the data input while holding the other enable low.
电源电压DC 4.50V min
输出接口数 16
针脚数 24
位数 16
输出电流Max 5.2 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Through Hole
引脚数 24
封装 DIP-24
封装 DIP-24
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CD74HCT154EN TI 德州仪器 | 当前型号 | 当前型号 |
CD74HCT154M 德州仪器 | 完全替代 | CD74HCT154EN和CD74HCT154M的区别 |
CD74HCT154M96 德州仪器 | 完全替代 | CD74HCT154EN和CD74HCT154M96的区别 |
CD4514BE 德州仪器 | 类似代替 | CD74HCT154EN和CD4514BE的区别 |
