CAV24C02YE-GT3

CAV24C02YE-GT3图片1
CAV24C02YE-GT3图片2
CAV24C02YE-GT3图片3
CAV24C02YE-GT3图片4
CAV24C02YE-GT3图片5
CAV24C02YE-GT3图片6
CAV24C02YE-GT3图片7
CAV24C02YE-GT3概述

2 KB , 4 KB , 8 KB和16 KB的I2C CMOS串行EEPROM 2-Kb, 4-Kb, 8-Kb and 16-Kb I2C CMOS Serial EEPROM

The CAV24C02 is a 2-kb CMOS Serial EEPROM device organized internally as 16 pages of 16 bytes each. This device supports both the Standard 100 kHz as well as Fast 400 kHz IData is written by providing a starting address, then loading 1 to 16 contiguous bytes into a Page Write Buffer, and then writing all data to non-volatile memory in one internal write cycle. Data is read by providing a starting address and then shifting out data serially while automatically incrementing the internal address count.External address pins make it possible to address up to eight CAV24C02 devices on the same bus.

Features |   | Benefits

---|---|---

 | |  | |  |

.
Automotive Temperature Grade 1 -40°C to +125°C

|   |

.
Allows the use in safety critical application.
.
2.5 V to 5.5 V Supply Voltage Range

|   |

.
Single power supply from 2.5V to 5.5V. Functional over the entire Temperature range.
.
These Devices are PbFree, Halogen Free/BFR Free and are RoHS Compliant

|   |

.
Space-Efficient Packaging
.
Supports Standard and Fast I2C Protocol

|   |

.
16-Byte Page Write Buffer

|   |

.
Hardware Write Protection for Entire Memory

|   |

.
CAV Prefix for Automotive and Other Applications Requiring Site and Change Control

|   |

.
Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs SCL and SDA

|   |

.
Low power CMOS Technology

|   |

.
1,000,000 Program/Erase Cycles

|   |

.
100 Year Data Retention

|   |

CAV24C02YE-GT3中文资料参数规格
技术参数

频率 0.1 MHz

无卤素状态 Halogen Free

供电电流 2 mA

存取时间Max 3500 ns

工作温度Max 125 ℃

工作温度Min -40 ℃

电源电压 2.5V ~ 5.5V

封装参数

安装方式 Surface Mount

引脚数 8

封装 TSSOP-8

外形尺寸

封装 TSSOP-8

物理参数

工作温度 -40℃ ~ 125℃ TA

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 PB free

数据手册

CAV24C02YE-GT3引脚图与封装图
CAV24C02YE-GT3引脚图
CAV24C02YE-GT3封装图

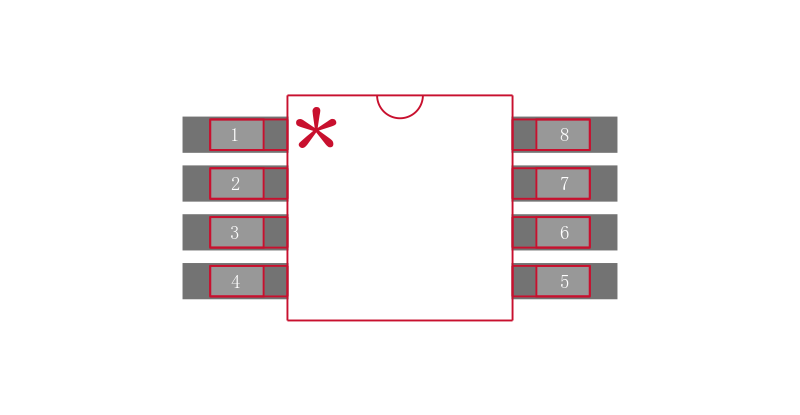

CAV24C02YE-GT3封装焊盘图
在线购买CAV24C02YE-GT3
型号: CAV24C02YE-GT3
描述:2 KB , 4 KB , 8 KB和16 KB的I2C CMOS串行EEPROM 2-Kb, 4-Kb, 8-Kb and 16-Kb I2C CMOS Serial EEPROM
替代型号CAV24C02YE-GT3
型号/品牌 代替类型 替代型号对比

CAV24C02YE-GT3

ON Semiconductor 安森美

当前型号

当前型号

CAT24C02YI-GT3

安森美

类似代替

CAV24C02YE-GT3和CAT24C02YI-GT3的区别

CAT24C02YI-GT3A

安森美

类似代替

CAV24C02YE-GT3和CAT24C02YI-GT3A的区别

CAT24C02YI-G

安森美

类似代替

CAV24C02YE-GT3和CAT24C02YI-G的区别
