PROM 串行 SPI,On Semiconductor### EEPROM 串行存取 - ON Semiconductor
电可擦 PROM 串行 SPI,On Semiconductor
### EEPROM 串行存取 -
立创商城:
SPI 64Kbit Twc=5ms EEPROM 串行 64-Kb SPI
得捷:
IC EEPROM 64KBIT SPI 10MHZ 8UDFN
欧时:

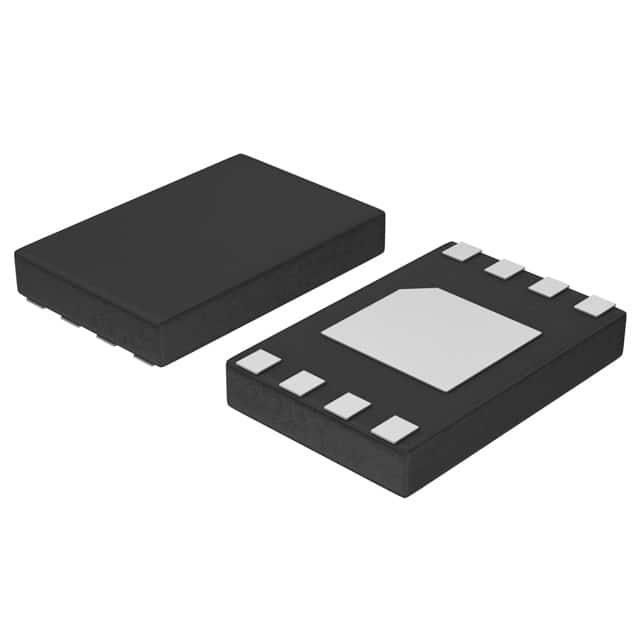

ON Semiconductor CAT25640HU4I-GT3 EEPROM 存储器, 64kbit, 8K x, 8, SPI接口, 2μs, 1.8 → 5.5 V, 8引脚
贸泽:
电可擦除可编程只读存储器 64KB SPI SER CMOS 电可擦除可编程只读存储器
艾睿:
EEPROM Serial-SPI 64K-bit 8K x 8 2.5V/3.3V/5V Automotive 8-Pin UDFN EP T/R
Allied Electronics:
CAT25640HU4I-GT3 EEPROM Memory, 64kbit, 2us, 1.8 - 5.5 V 8-Pin UDFN
Chip1Stop:
EEPROM Serial-SPI 64K-bit 8K x 8 2.5V/3.3V/5V 8-Pin UDFN EP T/R
Verical:
EEPROM Serial-SPI 64K-bit 8K x 8 2.5V/3.3V/5V Automotive 8-Pin UDFN EP T/R
频率 10 MHz
无卤素状态 Halogen Free
供电电流 3 mA
存取时间 40 ns
存取时间Max 40 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.8V ~ 5.5V
安装方式 Surface Mount
引脚数 8
封装 UDFN-8
长度 3.05 mm
宽度 2.05 mm
高度 0.48 mm
封装 UDFN-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Communications Systems, Consumer Systems, Automotive Systems, Industrial Systems, Computer Systems
RoHS标准 RoHS Compliant
含铅标准 PB free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CAT25640HU4I-GT3 ON Semiconductor 安森美 | 当前型号 | 当前型号 |
CAT25640VI-GT3 安森美 | 功能相似 | CAT25640HU4I-GT3和CAT25640VI-GT3的区别 |
