CAV25080VE-GT3

电可擦除可编程只读存储器 8KB SPI SER CMOS 电可擦除可编程只读存储器

The CAV25080 is 8-kb Serial CMOS EEPROM device internally organized as 1024x8. It features a 32-byte page write buffer and supports the Serial Peripheral Interface SPI protocol. The device is enabled through a Chip Select CS input. In addition, the required bus signals are a clock input SCK, data input SI and data output SO lines. The input may be used to pause any serial communication with the CAV25080 device. This device features software and hardware write protection, including partial as well as full array protection.

Features |   | Benefits

---|---|---

 | |  | |  |

.

Automotive Temperature Grade 1 -40°C to +125°C

|   |

.

Allows the use in safety critical application

.

2.5 V to 5.5 V Supply Voltage Range

|   |

.

Single power supply from 2.5 V to 5.5 V. Functional over the entire temperature range

.

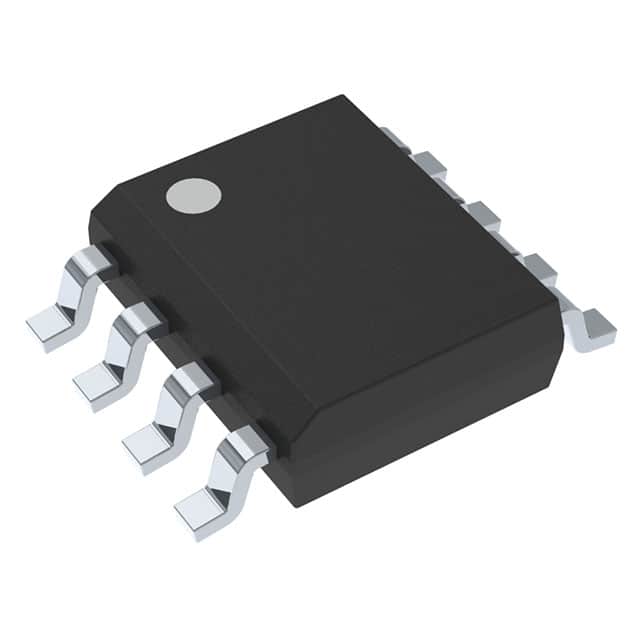

8-lead SOIC and TSSOP Packages

|   |

.

Space-Efficient Packaging

.

10 MHz SPI Compatible

|   |

.

SPI Modes 0,0 & 1,1

|   |

.

32-byte Page Write Buffer

|   |

.

Self-timed Write Cycle

|   |

.

Hardware and Software Protection

|   |

.

Block Write Protection

\- Protect ¼, ½ or Entire EEPROM Array

|   |

.

Low Power CMOS Technology

|   |

.

1,000,000 Program/Erase Cycles

|   |

.

100 Year Data Retention

|   |

.

Industrial and Extended Temperature Range

|   |

.

These Devices are Pb-Free, Halogen Free/BFR Free, and RoHS Compliant

|   |
