CD4098BMT

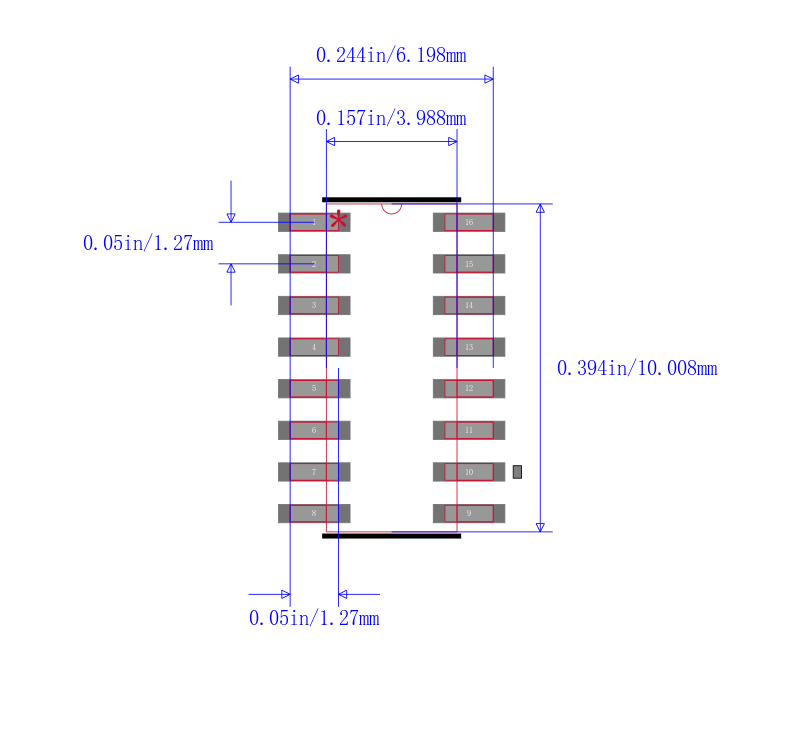

TEXAS INSTRUMENTS  CD4098BMT  逻辑芯片, 单稳多谐振荡器, SOIC-16

The is a CMOS dual Monostable Multivibrator provides stable retriggerable/resettable one-shot operation for any fixed-voltage timing application. An external resistor RX and an external capacitor CX control the timing for the circuit. Adjustment of RX and CX provides a wide range of output pulse widths from the Q and Q\ terminals. The time delay from trigger input to output transition trigger propagation delay and the time delay from set input to output transition RESET propagation delay are independent of RX and CX. Leading-edge-triggering +TR and trailing-edge-triggering -TR input are provided for triggering from either edge of an input pulse. An unused +TR input should be tied to VSS. An unused -TR input should be tied to VDD. A RESET on low level is provided for immediate termination of the output pulse or to prevent output pulses when power is turned on. An unused RESET input should be tied to VDD.

.

Retriggerable/resettable capability

.

Trigger and reset propagation delays independent of RX, CX

.

Triggering from leading or trailing edge

.

Separate resets

.

Wide range of output-pulse widths

.

100% Tested for maximum quiescent current at 20V

.

Standardized, symmetrical output characteristics

.

Green product and no Sb/Br
