CD40106BPWR

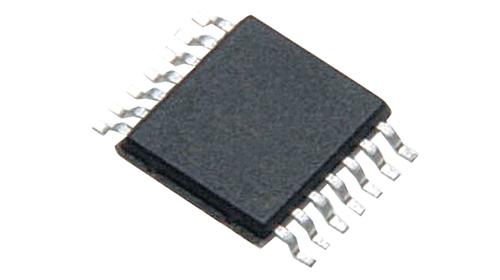

TEXAS INSTRUMENTS  CD40106BPWR  芯片, 六路非门, 施密特触发 TSSOP-14

The is a CMOS Hex Schmitt-trigger consists of six circuits. Each circuit functions as an inverter with Schmitt-trigger action on the input. The trigger switches at different points for positive- and negative-going signals. The difference between the positive-going voltage VP and the negative-going voltage VN is defined as hysteresis voltage VH.

.

Schmitt-trigger action with no external components

.

3.5V at VDD = 15V Hysteresis voltage

.

Noise immunity greater than 50%

.

No limit on input rise and fall times

.

Standardized, symmetrical output characteristics

.

100% Tested for quiescent current at 20V

.

Low VDD to VSS current during slow input ramp

.

5V, 10V and 15V Parametric ratings

.

Meets all requirements of JEDEC tentative standard No. 13B

.

Green product and no Sb/Br
