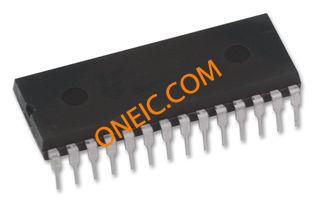

CYPRESS SEMICONDUCTOR CY7C185-20PXC 存储芯片, SRAM, 64K, 8KX8, 20NS, DIP28
The is a 64kB high-performance CMOS Static Random Access Memory SRAM organized as 8192 words by 8-bit. Easy memory expansion is provided by an active LOW chip enable, an active HIGH chip enable and active LOW output enable and tri-state drivers. This device has an automatic power-down feature, reducing the power consumption by 70% when deselected. An active LOW write enable signal controls the writing/reading operation of the memory. When CE1 and WE inputs are both LOW and CE2 is HIGH, data on the eight data input/output pins is written into the memory location addressed by the address present on the address pins. Reading the device is accomplished by selecting the device and enabling the outputs, CE1 and OE active LOW, CE2 active HIGH, while WE remains inactive or HIGH. Under these conditions, the contents of the location addressed by the information on address pins are present on the eight data input or output pins.
电源电压DC 5.00 V
供电电流 110 mA
针脚数 28
存取时间 20 ns
内存容量 8000 B
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.5V ~ 5.5V
安装方式 Through Hole
引脚数 28
封装 DIP-28
长度 36.19 mm
宽度 7.11 mm
高度 3.55 mm
封装 DIP-28
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
制造应用 Industrial, Computers & Computer Peripherals, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CY7C185-20PXC Cypress Semiconductor 赛普拉斯 | 当前型号 | 当前型号 |
7164S20TPG 艾迪悌 | 类似代替 | CY7C185-20PXC和7164S20TPG的区别 |
CY7C185-20PC 赛普拉斯 | 类似代替 | CY7C185-20PXC和CY7C185-20PC的区别 |
7164S20TP 艾迪悌 | 功能相似 | CY7C185-20PXC和7164S20TP的区别 |
