CY7C1041CV33-20ZSXA

4兆位（ 256K ×16 ）静态RAM 4-Mbit 256K x 16 Static RAM

Functional Description

The CY7C1041CV33 Automotive is a high performance CMOS static RAM organized as 262,144 words by 16 bits.

Features

■Temperature ranges

❐Automotive-A: –40 °C to 85 °C

❐Automotive-E: –40 °C to 125 °C

■Pin and function compatible with CY7C1041BNV33

■High speed

❐tAA= 10 ns Automotive-A

❐tAA= 12 ns Automotive-E

■Low active power

❐432 mW max

■2.0 V data retention

■Automatic power down when deselected

■TTL-compatible inputs and outputs

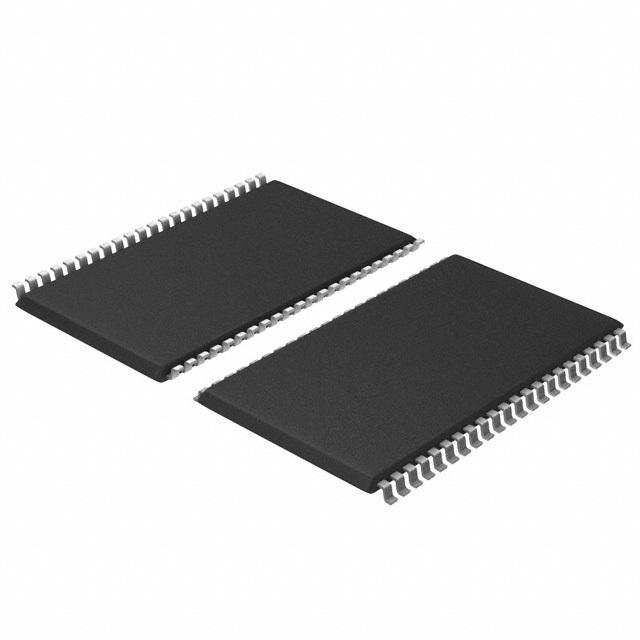

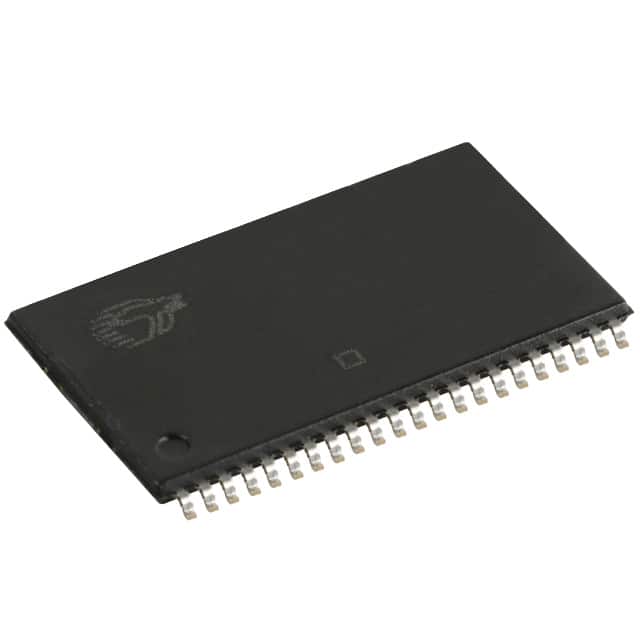

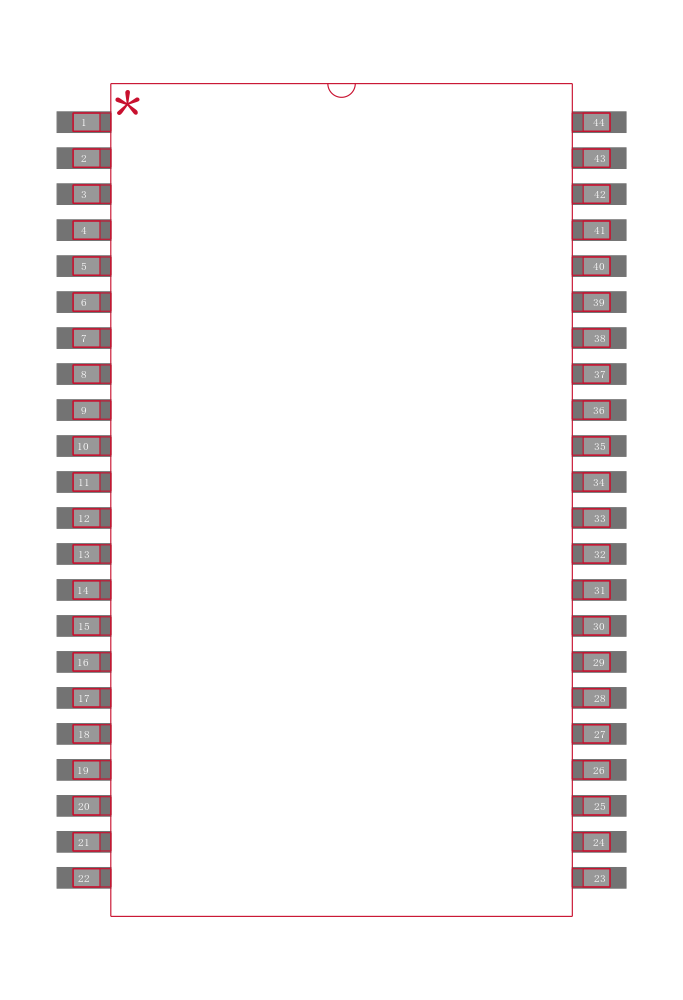

■Available in Pb-free and non Pb-free 44-pin 400 Mil SOJ, 44-pin

TSOP II and 48-ball FBGA packages
