CMOS和盖茨 CMOS AND GATES
Thanks to Texas Instruments and their logic gates, you can simplify your circuit down to a fundamental level. This gate has an operating temperature range of -55 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device has a typical operating supply voltage of 3.3|5|9|12|15 V. Its minimum operating supply voltage of 3 V, while its maximum is 18 V.
电源电压DC 3.00V ~ 18.0V
输出接口数 1
输出电流 6.8 mA
电路数 4
位数 4
传送延迟时间 250 ns
电压波节 5.00 V, 10.0 V, 15.0 V
静态电流 20.0 nA
逻辑门个数 4
输出电流驱动 -1.00 mA
输入数 2
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 3V ~ 18V
电源电压Max 18 V
电源电压Min 3 V

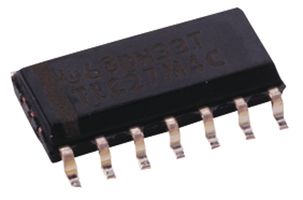

安装方式 Surface Mount

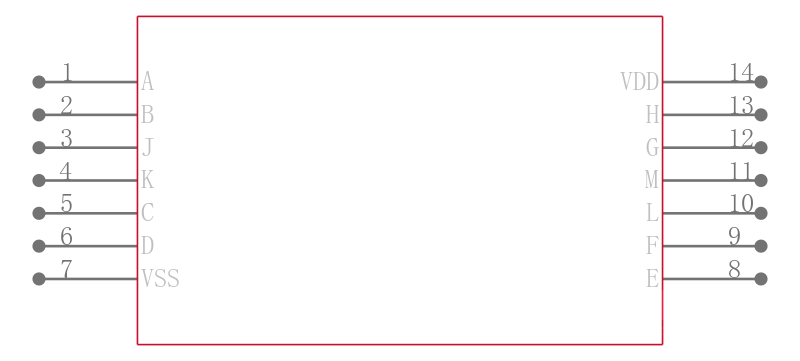

引脚数 14
封装 SOP-14
封装 SOP-14
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CD4081BNSR TI 德州仪器 | 当前型号 | 当前型号 |
CD4081BE 德州仪器 | 完全替代 | CD4081BNSR和CD4081BE的区别 |
CD4081BM96 德州仪器 | 完全替代 | CD4081BNSR和CD4081BM96的区别 |
CD4081BM 德州仪器 | 完全替代 | CD4081BNSR和CD4081BM的区别 |
